On-demand nanoengineering of in-plane ferroelectric topologies


By exactly controlling the motion of the piezo-positioner throughout scanning, it turns into doable to information the probe alongside any predetermined scan path, enabling the creation of particular topological configurations, not doable utilizing current scan paths (Supplementary Fig. 5). As proven within the setup sketch in (Fig. 3a), we achieved such exact management by integrating a commercially obtainable AFM system with a area programmable gate array (FPGA), managed externally with customized Python applications (AEcroscopy36). Within the experiments described beneath, we put together the floor through customary raster scanning with a biased tip, aligning the polarization in a particular course over a big space (~100 μm2). This course of creates a ‘clean slate’ in one of many 4 steady super-domain configurations (I−, I+, II− and II+; Supplementary Fig. 6).

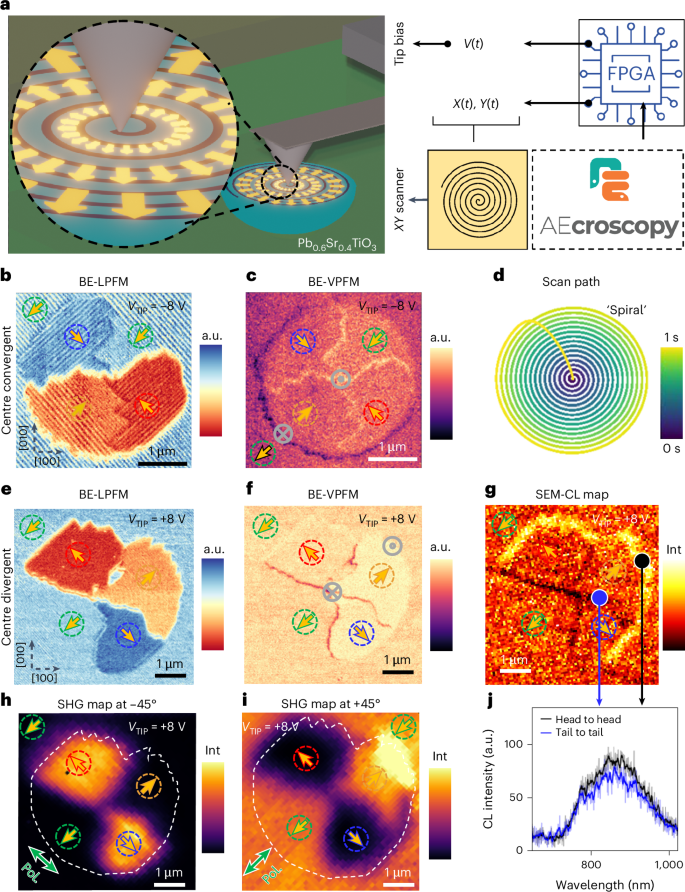

Fig. 3: Era of centre-divergent and centre-convergent buildings via spiral-scan lithography.
figure 3

a, An illustration of the experimental setup used for the measurements: AEcroscopy Python package deal controls an FPGA, which inputs the generated indicators (tip bias V(t), X piezo bias X(t) and Y piezo bias, Y(t)) to the AFM controller to autonomously carry out the beforehand Python-designed experiment. b, BE-LPFM piezoresponse (cantilever lengthy axis parallel to [100] crystallographic axis of the pattern) of the written centre-convergent construction. c, BE-VPFM piezoresponse of the written centre-convergent construction; the gray cross and dot in a circle point out the course of the out-of-plane parts for face to face and tail to tail. d, A spiral tip trajectory for the writing of the centre-convergent construction, beginning the trail on the centre and with a complete period of 1 s. e, BE-LPFM piezoresponse (cantilever lengthy axis parallel to [100] crystallographic axis of the pattern) of the written centre-divergent construction. f, BE-VPFM piezoresponse of the written centre-divergent construction; the gray cross and dot in a circle point out the course of the out-of-plane parts for face to face and tail to tail. g, SEM-CL map of the identical centre-divergent construction. h, An SHG map of the identical centre-divergent construction with the polarizer at −45° (see inexperienced arrow). i, An SHG map of the identical centre-divergent construction with the polarizer at +45° (see inexperienced arrow). j, Single SEM-CL spectra at head-to-head and tail-to-tail super-boundaries within the areas indicated by the black and blue dots in g, respectively. VTIP is the writing bias used to generate the construction. Int, depth of the cathodoluminescence (CL) sign.

For instance, we exhibit using a spiral-scan trajectory (Fig. 3d)—characterised by a radial slow-scan course and tangential fast-scan movement—to nucleate and stabilize centre-convergent and centre-divergent buildings utilizing adverse (Fig. 3b,c) and constructive (Fig. 3e,f) tip biases, respectively. This strategy unlocks the mixture of the 4 distinct super-domain orientations right into a steady configuration, with the in-plane super-domain dipoles oriented inwards and outwards, respectively, that includes charged inner (and peripheral) super-boundaries. Band-excitation lateral PFM (BE-LPFM) reveals the polarization alignment of the generated construction, discovering it’s not ruled by the radial (slow-scanning) course, because the super-domains are orienting the polarization anti-parallel (similar course, reverse signal) to it. Because of this, super-domain alignment contrasts with expectations for raster scanning, the place a parallel alignment resulting in a centre-divergent construction could be anticipated for a adverse bias scan that begins on the centre and traverses outwards radially. As a substitute, a centre-convergent construction is stabilized. Conversely, a constructive bias, anticipated to supply a centre-convergent construction below the identical scanning course, ends in a centre-divergent construction.

Apparently, the corresponding band-excitation vertical PFM (BE-VPFM) photographs (Fig. 3c,f) reveal an uneven vertical distinction at sure super-boundaries. Head-to-head super-boundaries exhibit a constructive vertical electromechanical response, whereas tail-to-tail super-boundaries exhibit adverse response, suggesting an area polarization tilting in the direction of constructive (and adverse) out-of-plane course at these charged areas, respectively. The dearth of conductive-AFM distinction on the super-boundaries (Supplementary Fig. 7) signifies that these expenses noticed by KPFM are usually not cell (Supplementary Fig. 8).

To discover the structural reorganization results, we performed correlative SHG and SEM-CL measurements on the identical buildings. SHG maps (Fig. 3h,i) reveal quadrant-specific excitation in centre-divergent buildings, dictated by the orientation of polarized mild adjusted at ±45°. This strategy allows exact mapping of native polarization, complementing BE-LPFM knowledge and offering deeper perception into generated super-boundaries. At a polarizer angle of −45° (Fig. 3h), solely quadrants aligned with the incident mild’s polarization yield measurable SHG indicators; at +45° (Fig. 3i), complementary quadrants show SHG responses together with background. Notably, the +45° picture displays an enhanced SHG response at head-to-head peripheral super-boundaries, indicating dipole alignment alongside the fabric’s [110] axis, alongside noticed out-of-plane polarization tilting.

SEM-CL measurements over the identical space reveal nanoscale variations in color centres and native polarizations (Fig. 3g), highlighting imbalanced head-to-head (vivid) and tail-to-tail (darkish) super-boundaries. The interplay of a focused-electron beam with a ferroelectric materials is influenced by luminescent centre focus and localized cost, shaping electron beam interactions. The near-infrared cathodoluminescence spectra peaked at 860 nm (Fig. 3j) maintains constant form however varies in emission depth, suggesting adjustments in radiative recombination effectivity or light-emitting species focus. In PSTO, charged defects, reminiscent of vacancies and compensating ions, are presumed to asymmetrically stabilize annoyed super-domain configurations. Positively charged head-to-head super-boundaries promote accumulation of charged defects related to environment friendly mild emission, leading to stabilized luminescence that favours service trapping and boosts radiative recombination processes in these areas.

To deepen our understanding of the soundness and polarization reorientation on the annoyed super-boundaries (Supplementary Figs. 10 and 11), we carried out phase-field simulations (Fig. 4). We began with preliminary buildings (Fig. 4b,c) mirroring the super-domain configurations noticed earlier than (Fig. 3) and, subsequently, enable these buildings to calm down to an equilibrium state below a tensile pressure of two% (Strategies). The simulations reveal that the preliminary configurations certainly calm down in the direction of steady preparations via polarization reorientation to stabilize the excessive electrostatic/strained super-boundary areas, that are energetically much less beneficial. Particularly, the tail-to-tail super-boundaries on the centre of the centre-divergent buildings generate a polarization rotation in the direction of the out-of-plane, downward course (that’s, darkish orange, centre of Fig. 4d). Conversely, on the centre of the centre-convergent construction, the head-to-head super-boundaries rotate the polarization in the direction of the out-of-plane, upward course (that’s, mild inexperienced, centre of Fig. 4e), in settlement with the BE-VPFM distinction discovered experimentally (Fig. 3).

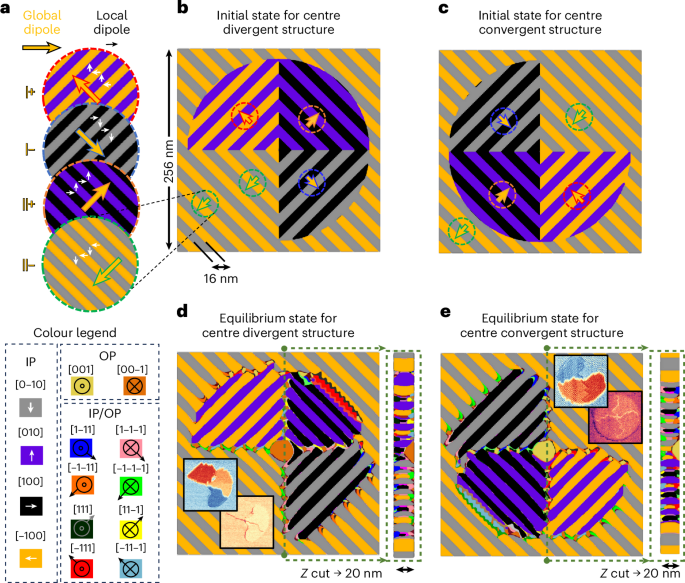

Fig. 4: Part-field modelling of the centre-divergent and centre-convergent buildings.
figure 4

a, The nanoscale association of the worldwide (orange) and native (black) ferroelectric dipoles within the in-plane instructions for the 4 completely different super-domains. The color legend signifies the three-dimensional polarization course for the phase-field buildings. b, The preliminary state used within the phase-field modelling for the centre-divergent construction. c, The preliminary state used within the phase-field modelling for the centre-convergent construction. d, The equilibrium state obtained within the phase-field modelling for the centre divergent. The inset describes the experimental BE-LPFM and BE-VPFM of the centre-divergent buildings of Fig. 3. The Z-cut cross-section throughout the entire movie alongside the dashed inexperienced line is proven on the proper. e, The equilibrium state obtained within the phase-field modelling for the centre-convergent. The inset describes the experimental BE-LPFM and BE-VPFM of the centre-convergent buildings of Fig. 3. The Z-cut cross-section throughout the entire movie alongside the dashed inexperienced line is proven on the proper. The color legend signifies the three-dimensional polarization course for the phase-field buildings in-plane (IP) and out-of-plane (OP).

Likewise, in all of the centre-divergent and centre-convergent buildings written on a uniform ‘clean slate’, we discover a extremely annoyed peripheral super-boundary in one of many 4 quadrants the place the super-domain of the ‘clean slate’ collides with the anti-parallel super-domain current within the construction (top-right super-boundary in Fig. 4c and bottom-left super-boundary in Fig. 4e). In these instances, we additionally observe the polarization rotation inducing an out-of-plane element of the polarization vector however on this case with further in-plane element additionally current (pink and light-blue partitions in Fig. 4c,e, respectively), which we hypothesize is answerable for the improved SHG sign (Fig. 3i). This reorientation additionally induces the formation of ‘sawtooth’ faceted super-boundaries to attenuate the electrostatic/elastic energies (Supplementary Figs. 10 and 11). The simulations point out that whereas a lot of the polarization preparations are homogeneous via the thickness of the movie, the small out-of-plane canting is most outstanding close to the movie floor (cross-sections in Fig. 4c,e).

Total, we decide that it’s doable to stabilize out-of-plane polarization on the super-boundaries of PSTO via the proper accumulation of elastic stress and electrostatic vitality and that this materials stabilizes upwards out-of-plane polarization to accommodate the head-to-head super-boundaries and, conversely, downward polarization to accommodate the tail-to-tail super-boundaries. Furthermore, we recommend that certainly, the in-plane native polarization rotation steps crucial to change the a1/a2 domains could occur via an intermediate out-of-plane rotation37,38, which might be mediated by the tip vertical electrical area, thus turning into the dominant agent of the in-plane super-switching (Supplementary Fig. 11).

As such, we are able to now revisit the hierarchical super-switching mechanism. The spiral scan begins within the central level the place the vertical electrical area nucleates an area out-of-plane polarization (upwards for adverse bias and downwards for constructive bias) surrounded by a handy super-domain association with synthetic super-boundaries (head-to-head for adverse bias and tail-to-tail for constructive bias). Within the absence of a scan path, these nucleation centres change into unstable attributable to their small area-to-boundary ratio and rapidly calm down when scanned over (Supplementary Fig. 12). Spiral scanning stabilizes these centres, increasing the super-boundaries through out-of-plane intermediate switching by creating a1/a2 stripe domains, that are as parallel as doable to the fast-scan course (tangential) and align appropriately with the nucleated super-domain configuration, producing a world orientation anti-parallel to the radial course. Subsequently, we speculate that on this case the stabilized closing polarization association is dictated by the signal of the initially nucleated area within the centre and never by the slow-scan course, difficult the trailing electrical area idea30,39.
