-0.8 C
United States of America
Monday, December 2, 2024

Microfluidic-engineered Chinese language natural nanocomposite hydrogel microspheres for diabetic wound tissue regeneration | Journal of Nanobiotechnology


Preparation and characterization of PPD-Lipo

HSPC is thought for its glorious stability and is often utilized as a lipid materials to reinforce the steadiness of liposomes. PPD, a key aglycone of notoginsenosides, shares the same construction to ldl cholesterol and might effectively act instead liposome materials [48]. The transmission electron microscope micrographs of PPD-Lipo ready utilizing the skinny movie hydration methodology, revealed a spherical vesicle morphology throughout varied magnifications (Fig. 2a and b). The imply particle diameter of PPD-Lipo was decided to be 118.50 ± 2.24 nm, with a polydispersity index of 0.194 (Fig. 2c), suggesting glorious dispersion properties. As well as, the steadiness of PPD-Lipo was verified by conducting successive measurements of particle dimension and PDI for 7 days (Fig. 2d). The outcomes constantly confirmed the identical values, highlighting the robust stability of PPD-Lipo. Constant stability is important for the continuing launch of PPD and the ensuing therapeutic effectiveness.

Synthesis and characterization of BSPMA

BSP, a pure polysaccharide derived from the Chinese language natural Bletilla striata, displays favorable biocompatibility and biodegradability [43]. Research reveal that BSP has a number of pharmacological properties and might operate as a provider substance for HMs by imitating the extracellular matrix. BSP is a linear polymer glucomannan consisting of mannose and glucose related by β−1,4-glycosidic linkages [41]. By activation with NaOH and esterification with methacrylic anhydride (MA) (Determine S1a), the hydroxyl teams on the molecular chain may be modified to introduce methacrylic acid teams, ensuing within the spinoff methacrylate BSP (BSPMA) with light-curing capabilities [42]. The presence of attribute proton peaks at 5.67ppm and 6.11ppm within the 1H-NMR spectrum (Determine S1b) confirms the profitable grafting of the MA group onto BSP. The diploma of substitution for BSPMA was decided to be 43% by way of peak space calculations. The affirmation of BSPMA synthesis was achieved by way of Fourier remodel infrared spectroscopy (FT-IR). The spectrum in (Determine S1d) exhibited a distinguished absorption peak at 3399 cm−1, comparable to the hydroxyl O-H stretching vibration peak of polysaccharides. Moreover, a weaker absorption peak at 2927 cm−1 indicated the stretching vibration peak of C-H, whereas peaks at 1151 cm−1, 1062 cm−1, and 1031 cm−1 confirmed the presence of pyranose. BSPMA displayed an intensified carbonyl (C = O) stretching vibration absorption peak at 1735 cm−1, suggesting the conversion of some hydroxyl teams into carbonyl teams post-reaction with MA. Moreover, the profitable solidification of BSPMA right into a hydrogel was validated by way of a small bottle inversion experiment (Determine S1c). On this examine, HMs and PPD-Lipo@HMs had been ready by microfluidic gear. The precursor resolution was a BSPMA resolution and a blended resolution of BSPMA and PPD-Lipo. The adjustable mechanical properties on this article can management the mechanical properties of HMs and PPD-Lipo@HMs hydrogel microspheres by controlling the mechanical properties of the precursor resolution. Oblique modulation of the mechanical properties of microspheres by figuring out the mechanical properties of prerequisite gels with completely different concentrations of BSPMA. The experimental information confirmed that the utmost compression pressure elevated with the rise of BSPMA resolution focus (Determine S1f, Determine S1g). Subsequently the mechanical properties of microspheres may be adjusted by the focus of BSP resolution.

Preparation and course of screening of HMs

Microfluidic expertise allows exact management of two or extra immiscible micro-volume liquids in micron-scale channels, permitting for the continual and managed preparation of emulsions or droplets with glorious monodispersity, controllable particle dimension, and morphology [49]. This expertise gives some great benefits of monodisperse particle dimension, a simple preparation course of, and straightforward management, making it broadly utilized within the manufacturing of HMs. On this analysis, we utilized microfluidic expertise to manufacture HMs. The interior section consisted of a BSPMA aqueous resolution (dispersed section), whereas the exterior section comprised paraffin oil with 5% Span 80 (steady section). The hydrogel pre-mixed resolution was dispersed inside the oil section to generate uniformly sized pre-gel droplets, which had been then crosslinked utilizing ultraviolet gentle to kind HMs. To research the impression of inner and exterior section movement charges on the morphology of HMs, varied movement charges had been employed. The interior section movement charges ranged from 0.2 to 0.7 mL/h, whereas the exterior section movement charges spanned from 2 to 7 mL/h. The formation of HMs underneath completely different movement charge ratios was examined utilizing an orthogonal methodology. Evaluation of the outcomes (Determine S2, Determine S3) revealed that HMs exhibited a spherical form throughout various inner and exterior section movement charges. ImageJ software program was utilized to randomly measure the diameter of 100 HMs, demonstrating an unimodal distribution within the diameter of all HMs teams. Below fastened exterior section movement charge situations, altering the inner section movement charge leads to various sizes of corresponding HMs, as illustrated in Determine S3b. Bigger inner section movement charges result in bigger HMs sizes; nevertheless, excessively excessive inner section movement charges stop the formation of droplets and as an alternative generate fibers. Conversely, when sustaining a continuing inner section movement charge and adjusting the exterior section movement charge, depicted in Determine S3c, rising the exterior section movement charge leads to smaller particle sizes of the corresponding HMs. Extreme exterior section movement charges additionally inhibit HMs formation. To research the impression of inner section focus on HMs morphology and dimension, 4 completely different concentrations of BSPMA resolution (0.5%, 1%, 1.5%, 2%) had been utilized as the inner section. The movement charges of each inner and exterior phases had been fastened, and droplets had been shaped utilizing microfluidics and solidified into HMs. As proven in Determine S4a and Determine S4b, the dimensions of HMs generated from varied inner section concentrations on the identical movement charge differs. HMs dimension will increase with larger inner section concentrations, whereas the speed of HMs formation decreases with focus.

Fig. 2
figure 2

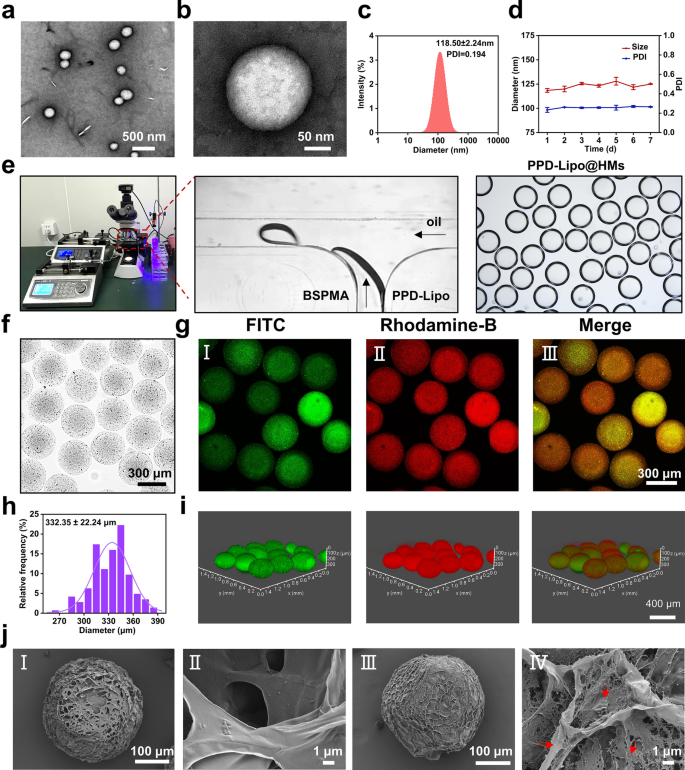

Characterization of PPD-Lipo and PPD-Lipo@HMs. a, b Transmission electron microscopy photos of PPD-Lipo in several fields of view: a 500 nm, b 50 nm. c The particle dimension distribution of PPD-Lipo. d Stability of PPD-Lipo. e Schematic diagram of droplet microfluidic machine, and microsphere encapsulating PPD-Lipo. f The intense subject microscope picture of PPD-Lipo@HMs. Scale bar:300 μm. g CLSM photos of PPD-Lipo@HMs: I FITC-labeled PPD-Lipo picture, (II) Rhodamine-labeled HMs picture, (III) PPD-Lipo@HMs merge picture, Scale bar:300 μm. h The particle dimension distribution of PPD-Lipo@HMs. i CLSM 3D scanning footage of PPD-Lipo@HMs. Scale bar:400 μm. j SEM photos of HMs and PPD-Lipo@HMs. (I, II) SEM photos of HMs in several fields of view, Scale bar:100 μm, 1 μm. (III, IV) SEM photos of PPD-lipo@HMs in several fields of view. Scale bar: 100 μm,1 μm. The information are expressed as imply ± SD, n ≥ 3

Preparation and characterization of PPD-Lipo@HMs

HMs have garnered important consideration within the biomedicine and tissue engineering sectors as efficient carriers for drug and cytokine supply [19]. In distinction to traditional hydrogels, HMs supply distinct benefits comparable to injectability, modularity, and porosity [17]. The preparation of PPD-Lipo@HMs utilizing the three.3 course of is illustrated in Fig. 2e. HMs generated by way of microfluidic expertise appeared uniform and intact underneath an optical microscope (Fig. 2f). To verify the profitable loading of PPD-Lipo into HMs, we utilized completely different fluorescent dyes to label PPD-Lipo (FITC) and HMs (Rhodamine-B), observing the presence of liposomes inside the HMs by way of confocal laser scanning microscope (CLSM). The presence of evenly dispersed inexperienced fluorescence inside the HMs, as depicted in Fig. 2g, serves as proof of the profitable loading and distribution of PPD-Lipo inside the HMs. Given the 3D spherical nature of HMs, we additional carried out 3D fluorescence scanning utilizing CLSM on the fluorescently labeled HMs. The outcomes, as proven in (Fig. 2i), revealed a uniformly dispersed sphere of inexperienced fluorescence from the PPD-Lipo, corroborating its profitable dispersion inside the HMs. Particle dimension evaluation indicated a single peak distribution for the diameter of PPD-Lipo@HMs, with a median diameter of (332.35 ± 22.24) µm (Fig. 2h). Examination of the floor morphology of PPD-Lipo@HMs by way of scanning electron microscopy (SEM) highlighted the presence of a porous construction, facilitating the discharge of PPD (Fig. 2j). Moreover, a comparative evaluation between HMs and PPD-Lipo@HMs demonstrated the floor distribution of PPD-Lipo inside a 1 μm subject of view, additional confirming the profitable loading of PPD-Lipo onto PPD-Lipo@HMs.

In vitro swelling, thermogravimetric, and degradation evaluation of PPD-Lipo@HMs

The extremely porous 3D spherical community construction of HMs permits them to successfully soak up wound exudate and create a moist setting conducive to therapeutic [18]. Our analysis targeted on investigating the swelling conduct of HMs and PPD-Lipo@HMs in deionized water at room temperature. The outcomes depicted in Fig. 3a and b show that each HMs and PPD-Lipo@HMs exhibit important swelling charges, reaching 1843% and 1658% inside 30 min, respectively. Furthermore, they keep this swollen state over time, indicating their means to quickly soak up liquid and maintain a moist setting, which is essential for selling diabetic wound therapeutic. Moreover, the thermal properties of HMs and PPD-Lipo@HMs had been analyzed utilizing thermogravimetric evaluation (TGA) as proven in Fig. 3c. The burden loss profiles revealed that the preliminary weight reduction between 30 ~ 100 °C was attributed to water evaporation, whereas the foremost weight reduction between 200 ~ 400 °C was as a result of degradation of the molecular chain of BSP. Importantly, the thermal stability of HMs was not compromised by the addition of PPD-Lipo, as each HMs and PPD-Lipo@HMs exhibited good thermal stability. The biodegradability of 3D community buildings of wound dressing, comparable to HMs, performs a vital function in sustaining the deposition of ECM in pores and skin tissue and controlling the discharge of drug elements [50]. Outcomes from in vitro degradation experiments (Fig. 3d) point out that each HMs and PPD-Lipo@HMs exhibit a gradual degradation sample, selling a sustained launch of PPD-Lipo for long-term therapy. Moreover, SEM evaluation of freeze-dried HMs and PPD-Lipo@HMs at varied time factors reveals adjustments within the 3D construction as a degradation course of (Fig. 3e). The PPD-Lipo@HMs initially collapse on the floor after the primary week, adopted by the publicity of their inner framework by the third week, aligning with the degradation information introduced in Fig. 3d. These findings show the potential of steady degradation of microspheres for reaching sustained launch of PPD.

Fig. 3
figure 3

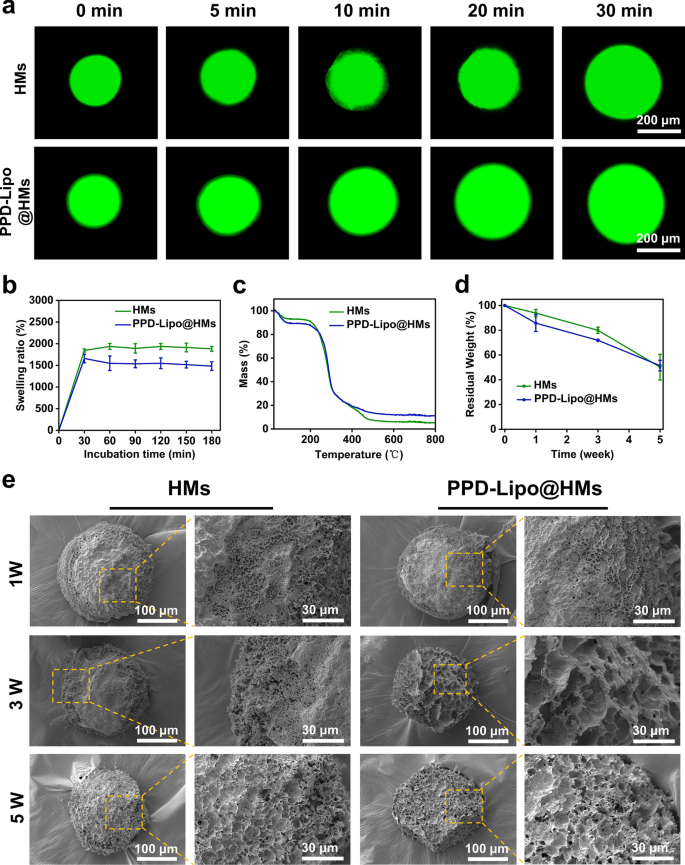

Characterization of swelling, thermogravimetric, and degradation properties of HMs and PPD-Lipo@HMs. a Swelling fluorescence microscope photos of HMs and PPD-Lipo@HMs. Scale bar:200 μm. b The swelling curves of HMs and PPD-lipo@HMs. c TGA of HMs and PPD-Lipo@HMs. d Degradation curves of HMs and PPD-Lipo@HMs. e SEM photos of HMs and PPD-Lipo@HMs after degradation at completely different instances. Scale bar: 100 μm and 30 μm. The information are expressed as imply ± SD, n ≥ 3

PPD encapsulation and launch properties of PPD-Lipo@HMs

PPD displays poor bioavailability, a slender therapeutic index, and is well cleared as a water-insoluble drug within the physique [51]. The encapsulation of PPD in liposomes can enhance its water solubility and allow a gradual and sustained launch. Moreover, incorporating these liposomes into HMs can improve the steadiness of the drug supply system, permitting PPD to successfully promote angiogenesis and wound therapeutic. The encapsulation efficiencies of PPD in PPD-Lipo and PPD-Lipo@HMs had been measured at 87.38 ± 10.51% and 76.99 ± 10.01%, respectively (Fig. 4a). The slight lower in encapsulation effectivity noticed in PPD-Lipo@HMs could also be attributed to drug leakage and the publicity of liposomes throughout the oil-removing course of [33]. Subsequent drug launch experiments revealed a biphasic launch sample for PPD loaded in each PPD-Lipo and PPD-Lipo@HMs, characterised by an preliminary fast launch adopted by a sustained gradual launch. Notably, PPD-Lipo@HMs demonstrated a extra sustained drug launch in comparison with free PPD and PPD-Lipo (Fig. 4b), indicating their potential as an efficient drug supply system for managed PPD launch. Within the context of diabetic wound therapy, PPD-Lipo@HMs may supply extended drug remedy advantages and stop the fast clearance of PPD-Lipo in wound settings.

Hemostasis and hemolysis experiments in vitro

The biocompatibility of tissue engineering supplies is essential for his or her potential medical use [47]. The in vitro hemolysis exercise of various teams was assessed, with TritonX-100 serving because the constructive management and saline because the adverse management. The in vitro blood compatibility of PPD-Lipo, HMs, and PPD-Lipo@HMs was examined. The supernatant coloration of the pattern group resembled that of the saline group, whereas the TritonX-100 constructive group exhibited a definite shiny pink hemolysis phenomenon (Fig. 4c). Quantitatively, PPD-Lipo, HMs, and PPD-Lipo@HMs all demonstrated decrease hemolysis charges (Fig. 4d). Importantly, the hemolysis charges of every group at varied concentrations had been beneath the accepted restrict of 5%. This means that PPD-Lipo and PPD-Lipo@HMs exhibit glorious blood compatibility as supplies for wound tissue engineering. In diabetic wounds, managing post-debridement bleeding is a important problem, and efficient hemostasis is important for wound therapeutic. Hemostatic powder gives clear benefits for incompressible wounds [47, 52]. On this examine, HMs and PPD-Lipo@HMs had been freeze-dried to guage their hemostatic properties. The hemostatic efficacy of PPD-Lipo@HMs was assessed utilizing a mouse liver bleeding mannequin (Determine S5a), and in comparison with the HMs group (202.53 ± 50.37 mg) and clean group (97.37 ± 41.11 mg). The blood loss within the PPD-Lipo@HMs group (59.37 ± 15.36 mg) was considerably decreased (Determine S5b, Determine S5c). These findings recommend that PPD-Lipo@HMs can function efficient hemostatic supplies in diabetic wound tissues.

Fig. 4
figure 4

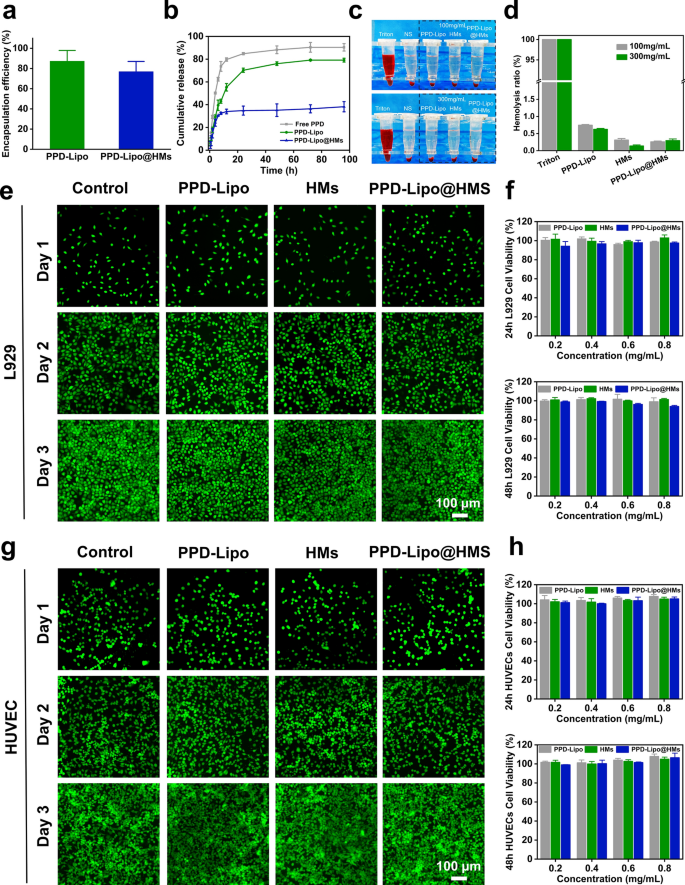

In vitro launch and biocompatibility of PPD-Lipo@HMs. a Drug encapsulation of PPD-Lipo and PPD-Lipo@HMs. b In vitro drug launch of PPD-Lipo and PPD-Lipo@HMs. c Hemolysis photos had been handled with completely different concentrations of samples. d Hemolysis charge. e, g Reside/Useless staining of L929 and HUVECs co-cultured with completely different samples (Management, PPD-Lipo, HMs, PPD-Lipo@HMs). Scale bar:100 μm. f, h The cytotoxicity of co-cultured with completely different samples for twenty-four h and 48 h (L929 and HUVECs), f L929, h HUVECs. The information are expressed as imply ± SD, n ≥ 3

Biocompatibility of PPD-Lipo@HMs

As a wound tissue implant materials, tissue-engineered HMs should exhibit good biocompatibility to make sure profitable integration [53]. The migration and practical adjustments of fibroblasts and endothelial cells play a vital function within the therapeutic strategy of diabetic pores and skin defects. To evaluate the biocompatibility of HMs, varied exams comparable to Reside/Useless staining, cell counting kit-8 (CCK-8), and skeleton staining had been carried out on L929 fibroblasts and HUVEs cells. The experimental teams included a management group, a PPD-Lipo group, an HMs group, and a PPD-Lipo@HMs group, all evaluated utilizing the direct contact methodology. When L929 fibroblasts and HUVECs cells had been co-cultured for 1d, second, and 3d, Reside/Useless staining revealed good cell morphology and viability throughout all teams (Fig. 4e and g). Moreover, CCK8 evaluation at 24 h and 48 h confirmed excessive survival charges of L929 and HUVEC cells, exceeding 90% in all circumstances (Fig. 4f and h). These outcomes indicated that the PPD-Lipo@HMs met the usual for low-toxicity biomaterials, with no important variations noticed between the experimental teams. Cytoskeleton staining was carried out on co-cultured L929 and HUVEC cells on the first and 2nd days to evaluate proliferation charge and morphology (Fig. 5a), important for pores and skin wound tissue restore. Cell morphology appeared regular on the 2nd day in comparison with the first day, with no important adjustments noticed. Filamentous protrusions had been current, displaying no notable variations between teams (Fig. 5b and c). The outcomes point out that each L929 and HUVECs cells maintained regular proliferation exercise in PPD-Lipo@HMs, laying the groundwork for diabetic wound tissue restore.

Fig. 5
figure 5

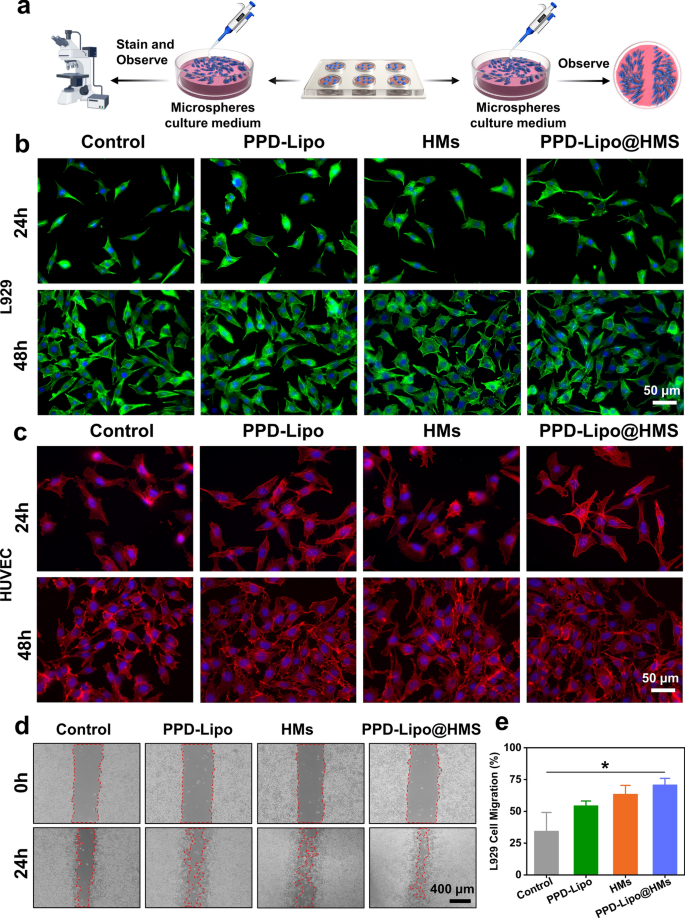

Cytoskeleton staining and cell scratches of PPD-Lipo@HMs. a A schematic diagram of cytoskeleton staining and L929 cell migration assay. b L929 cytoskeleton staining. Scale bar:50 μm. c HUVECs cytoskeleton staining. Scale bar:50 μm. d L929 cell migration outcomes. Scale bar:400 μm. e Quantitative evaluation of L929 migration. The information are expressed as imply ± SD, n ≥ 3. *p < 0.05

Migration and angiogenesis in vitro

The environment friendly tissue restore course of depends on the event of quite a few new blood vessels within the granulation tissue, offering important vitamins and structural help for extracellular matrix deposition, thereby enhancing wound restore. Angiogenesis dysfunction is a key issue contributing to delayed wound therapeutic in power diabetic wound tissues [54]. The migration and proliferation of L929 and HUVEC cells play a vital function in angiogenesis [4]. To evaluate the pro-angiogenic results of various samples, a scratch take a look at and angiogenesis take a look at (Fig. 6a) had been carried out on varied pattern teams: management, PPD-Lipo, HMs, and PPD-Lipo@HMs. Initially, the cell scratch take a look at was carried out, revealing enhanced cell migration within the PPD-Lipo, HMs, and PPD-Lipo@HMs teams in comparison with the management group. Notably, the PPD-Lipo@HMs group exhibited probably the most important promotion of cell migration, attributed to the efficient launch of PPD and the stimulation of BSP (Figs. 5d and 6b). Figures 5e and 6e These twin results set the stage for PPD-Lipo@HMs to facilitate cell proliferation in angiogenesis. In our examine, angiogenesis experiments had been carried out in 4 teams: management group, PPD-Lipo group, HMs group, and PPD-Lipo@HMs group, as illustrated in Fig. 6c. Vascular formation was noticed at 4 h, with the management group displaying a small variety of efficient tubes and largely scattered nodules. In distinction, the PPD-Lipo group, HMs group, and PPD-Lipo@HMs group exhibited lumens shaped by HUVECs cells. Vascular nodes and complete capillary size had been used as metrics to quantify blood vessel formation. The angiogenic impact of the PPD-Lipo group was considerably superior to that of the management and HMs teams. Notably, the PPD-Lipo@HMs group demonstrated probably the most favorable consequence, probably as a result of accelerated lumen formation induced by PPD. Our outcomes point out that the PPD-Lipo@HMs group exhibited extra distinguished blood vessel formation and better vascularization ranges in comparison with different teams (Fig. 6f and g).

Macrophage polarization

Within the context of diabetic wound tissue restore, macrophages play a vital function in immune regulation. Initially, M1-like macrophages drive the inflammatory response by releasing pro-inflammatory elements like tumor necrosis issue (TNF-a) and interleukin-1 (IL-1) to get rid of pathogens and necrotic tissue within the wound. Subsequently, because the inflammatory section resolves, macrophages transition to the M2-like phenotype, dampening irritation and selling tissue restore by releasing anti-inflammatory elements comparable to IL-10 [55]. Nonetheless, in diabetic wound therapeutic, the shift from M1-like to M2-like phenotype is impaired, resulting in extended irritation and hindered therapeutic [7]. To research the anti-inflammatory properties of PPD-Lipo@HMs and their impression on macrophage polarization, RAW264.7 cells had been used as a macrophage mannequin, with lipopolysaccharide (LPS) inducing M1-like polarization. CD86 and CD206 had been employed as M1-like and M2-like markers to evaluate irritation in diabetic wounds, and movement cytometry was utilized to investigate the impact of PPD-Lipo@HMs on macrophage polarization. Following 24-hour incubation with LPS, nearly all of macrophages adopted the M1-like subtype, mimicking the immune setting of diabetic wounds. The proportions of M2-like macrophages handled with PBS, PPD-Lipo, HMs, and PPD-Lipo@HMs had been 0.15, 0.30, 6.76, and seven.62(Fig. 6d), respectively. Notably, PPD-Lipo@HMs exhibited the very best proportion of M2-like macrophages indicating that this assemble (Determine S6a and b), derived from the pure polysaccharide BSP, may modulate macrophage phenotype transformation to the M2-like subtype and scale back irritation length.

Fig. 6
figure 6

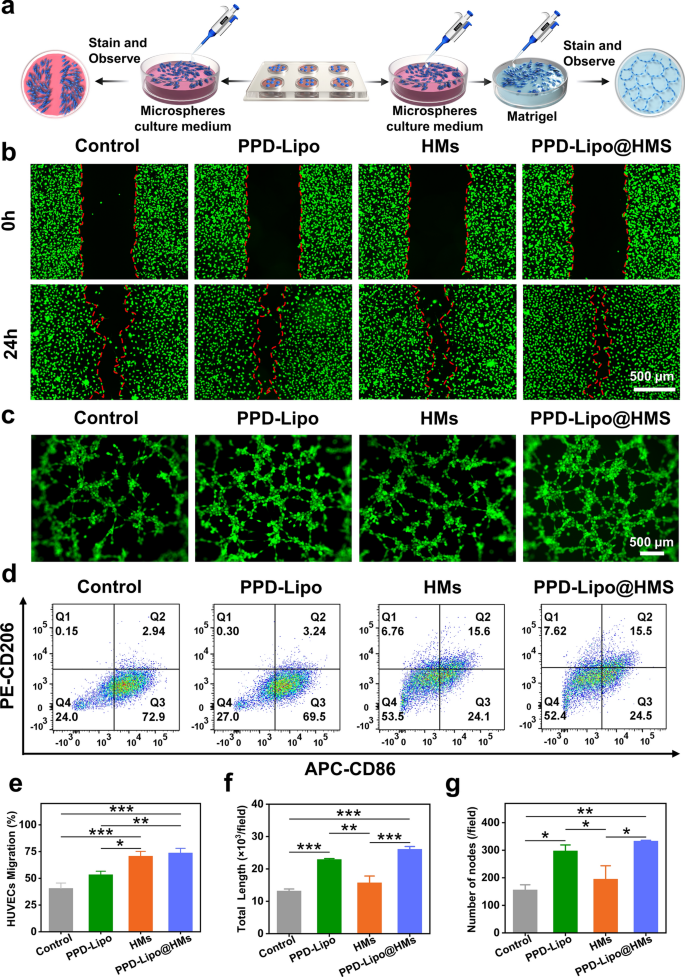

Cell scratch, tube formation, and macrophage polarization. a Cell scratch and tube formation experiment schematic diagram. b HUVECs wound scratch therapeutic measurement photos of various teams. Scale bar: 500 μm. c The tube formation of HUVECs on matrigel after incubation with completely different teams for 4 h. Scale bar: 500 μm. d The expression of CD206 and CD86 was analyzed by movement cytometry. RAW264.7 cells had been handled with PBS, PPD-Lipo, HMs, and PPD-Lipo@HMs, respectively. e Quantitative evaluation of HUVEC migration. f The overall size of capillaries in randomly chosen areas. g The variety of nodes. The information are expressed as imply ± SD, n ≥ 3. *p < 0.05, **p < 0.01, ***p < 0.001

In vivo pores and skin tissue regeneration of diabetic rats

Early research have demonstrated that HMs and PPD-Lipo@HMs exhibit fine condition adjustability and biocompatibility. These supplies have been proven to advertise the proliferation and migration of fibroblasts and endothelial cells, stimulate angiogenesis, and regulate macrophage phenotype transformation. On this examine, a rat mannequin of kind I diabetes was efficiently established by way of intraperitoneal injection of STZ. After one week, blood glucose ranges had been measured by way of tail vein blood assortment, all of which had been discovered to be higher than 16.67 mmol/L (Determine S7). Subsequently, an (8 mm) full-thickness pores and skin harm mannequin was created on the rats’ backs, they usually had been handled with gauze (Management), PPD-Lipo, HMs, and PPD-Lipo@HMs respectively to research how hydrogel microspheres promote wound tissues restore in diabetic rats.

Images of the handled wounds had been taken on days 0, 3, 7, 10, and 14 to evaluate therapeutic progress (Fig. 7a). Evaluation in Fig. 7b revealed that by day 7, wounds within the HMs group and PPD-Lipo@HMs group exhibited considerably sooner therapeutic in comparison with the PPD-Lipo group and management group. By day 14, wounds within the PPD-Lipo@HMs group confirmed almost full therapeutic with minimal scarring, whereas the management group nonetheless displayed persistent irritation and darkish scabs. Moreover, a wound closure simulation generated from digital photos (Fig. 7C) demonstrated that the HMs group and PPD-Lipo@HMs group had a notably accelerated therapeutic charge in comparison with the management group. Particularly, the common wound therapeutic areas on the seventh day had been 64.84% and 67.99% for the HMs group and PPD-Lipo@HMs group, respectively, larger than the management group (34.27%) and PPD-Lipo group (35.42%). This enhanced therapeutic may be attributed to the PPD-Lipo@HMs derived from BSP, which facilitate the transformation of macrophages to M2-like phenotype, thereby decreasing early inflammatory responses and selling wound closure. By day 14, wounds handled with PPD-Lipo@HMs displayed the very best therapeutic proportion at 94.22%, surpassing the HMs (90.33%), PPD-Lipo (87.84%), and management (84.76%) teams (Fig. 7E).

On days 7 and 14, we assessed wound mattress re-filling, granulation tissue formation, and epithelial re-formation by way of H&E staining. By the 14th day, we noticed a spot within the granulation tissue, marked by two inexperienced triangles, with notable variations among the many 4 teams (Fig. 7d). Granulation tissue, comprising fibroblasts, macrophages, matrix proteins, and neovascularization, performs a vital function in early wound therapeutic phases. Quantitatively, the PPD-Lipo@HMs group exhibited the smallest tissue hole at 3.00 ± 0.80 mm, outperforming the opposite teams (Fig. 7g). By day 7, small gaps existed between granulation tissue and surrounding tissue in all teams, however by day 14, these gaps had closed within the HMs and PPD-Lipo@HMs teams, indicating robust tissue adhesion. Angiogenesis is important for wound therapeutic because it enhances oxygen and cytokine supply, accelerating regeneration. Pores and skin re-epithelialization acts as a protecting barrier in opposition to infections and water loss. Notably, pores and skin thickness within the PPD-Lipo@HMs group was higher than in different teams (Fig. 7f). Total, the PPD-Lipo@HMs group demonstrated superior wound therapeutic efficiency with minimal tissue gaps, robust tissue adhesion, and important angiogenesis, resulting in fast and efficient therapeutic.

Fig. 7
figure 7

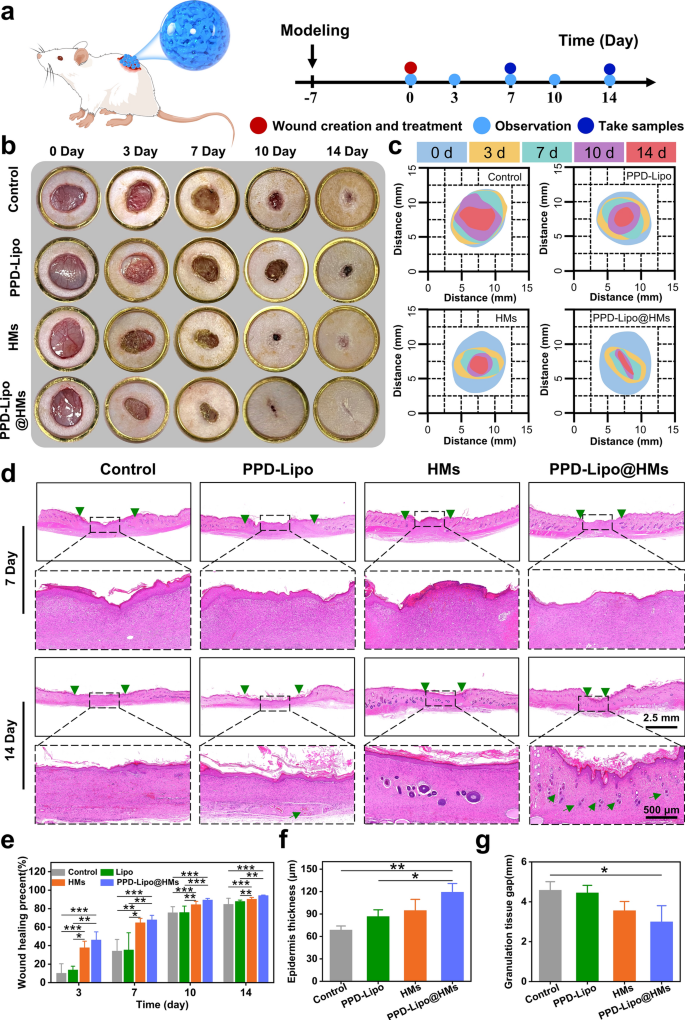

PPD-Lipo@HMs promotes wound therapeutic in a full-thickness pores and skin harm mannequin of diabetic sufferers. a A schematic diagram of PPD-Lipo@HMs for accelerating wound therapeutic. b Consultant footage of wound therapeutic in several therapy teams on days 0,3,7,10 and 14. c The schematic diagram of the wound therapeutic course of. d Consultant photos of pores and skin tissue sections stained with H&E on days 7 and 14. Scales bar:2.5 mm and 500 μm. Two inexperienced triangles characterize granulation tissue areas, and inexperienced arrows characterize newly shaped blood vessels. e Quantitative evaluation of wound therapeutic space at completely different time factors. f Quantitative evaluation of granulation tissue hole on day 14. g Quantitative evaluation of the epidermal thickness of wound therapeutic on day 14. The information are expressed as imply ± SD, n ≥ 3. *p < 0.05, **p < 0.01, ***p < 0.001

Histopathologic evaluations of collagen deposition, neovascularization, and irritation microenvironment

Collagen, as the first extracellular matrix within the pores and skin, performs a vital function in wound therapeutic [56]. Masson trichrome staining was utilized to evaluate collagen deposition and group, significantly kind I collagen, which reinforces wound tensile energy within the preliminary phases to supply structural help. On day 7, the Management group exhibited a decrease fraction of collagen deposition in comparison with the PPD-Lipo@HMs group, which displayed superior efficiency in stimulating collagen deposition (Fig. 8c). By the 14th day, the PPD-Lipo@HMs group demonstrated a histological construction resembling wholesome rat pores and skin, full with discernible hair follicles and blood vessels, whereas the management group exhibited fewer and fewer organized collagen fibers (Fig. 8a). The collagen deposition fractions for the Management, PPD-Lipo, HMs, and PPD-Lipo@HMs teams had been 37.73 ± 3.47%, 39.23 ± 1.07%, 47.70 ± 10.69%, and 56.30 ± 3.64%, respectively (Fig. 8d). These findings recommend that PPD-Lipo@HMs can notably expedite collagen deposition on the wound web site.

Along with collagen deposition, angiogenesis performs a vital function within the therapeutic of diabetic wounds by offering important vitamin by way of the formation of recent blood vessels within the granulation tissue [5]. To verify the power of PPD-Lipo@HMs to advertise angiogenesis in wound tissue, the expression of clean muscle actin protein (a-SMA), a marker for angiogenesis in diabetic wounds, was assessed utilizing immunofluorescence. The outcomes depicted in Fig. 8b revealed low constructive staining within the management group, indicating minimal blood vessel formation, whereas each the PPD-Lipo group and PPD-Lipo@HMs group exhibited important constructive staining. Notably, the expression of a-SMA was considerably larger within the PPD-Lipo group in comparison with the HMs group, demonstrating the power of PPD to reinforce a-SMA expression and promote angiogenesis. Furthermore, the vascular density within the PPD-Lipo@HMs group was notably larger than within the different teams, suggesting that steady launch of PPD from PPD-Lipo@HMs stimulated the manufacturing of vascular progress elements resulting in elevated angiogenesis (Fig. 8e). CD31, an intercellular adhesion molecule discovered on endothelial cells, performs a vital function in vascular formation and stability. Immunofluorescence evaluation on the seventh day post-wound restore confirmed considerably larger expression of CD31 within the therapeutic pores and skin of the PPD-Lipo group and PPD-Lipo@HMs group in comparison with the Ctrl group and HMs group (Fig. 8f). This commentary aligns with the a-SMA outcomes, indicating that PPD successfully enhances early vascularization in diabetic wounds when launched by PPD-Lipo@HMs, facilitating the transport of oxygen and vitamins to the wound web site and accelerating the therapeutic course of.

Fig. 8
figure 8

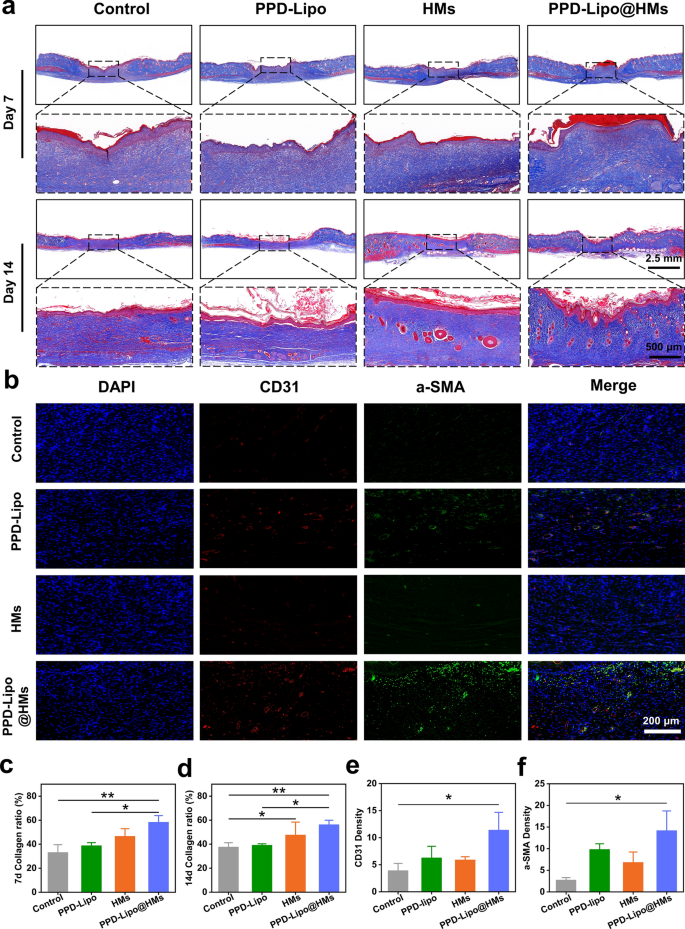

In vivo examine of PPD-Lipo@HMs selling collagen deposition and angiogenesis in diabetic wounds. a Consultant photos of Masson trichrome staining of wounds handled in several teams on days 7 and 14. Scales bar:2.5 mm and 500 μm. b Consultant photos of a-SMA and CD31 immunofluorescence on day 7. Scale bar:200 μm. c Collagen deposition density on day 7 in several teams. d 14 collagen deposition density in several teams. e Immunofluorescence quantitative evaluation of a-SMA. f Immunofluorescence quantitative evaluation of CD31. The information are expressed as imply ± SD, n ≥ 3.* p < 0.05, ** p < 0.01, *** p < 0.001.

Within the strategy of diabetic wound tissue restore, power irritation of the wound hinders the therapeutic course of. Modulating the immune microenvironment of the wound is essential for enhancing wound tissue restore [57]. Research have demonstrated that BSP can goal macrophage mannose receptors, prompting M1-like macrophages to transition into M2-like macrophages [7, 41, 42]. This transition results in a major lower in wound irritation ranges and finally accelerates wound tissue restore. To evaluate the extent of wound irritation post-treatment in every group, the expression of CD86 and CD206 markers related to M1-like and M2-like macrophages was examined by way of immunofluorescence. The management group exhibited elevated CD86-positive cell expression (pink fluorescence) on the seventh day of wound therapeutic (Fig. 9c), whereas the HMs group and PPD-Lipo@HMs group displayed extra pronounced CD206-positive cell expression (inexperienced fluorescence) within the subcutaneous layer of the wound space (Fig. 9a). Furthermore, in comparison with the HMs group, the PPD-Lipo@HMs group exhibited a extra noticeable expression of CD206-positive cells, indicating a higher induction of macrophages in direction of the M2-like phenotype (Fig. 9d). MPO serves as each a practical marker of neutrophils and an indicator of neutrophil activation, making it a helpful marker for assessing wound irritation. Following therapy, MPO expression was analyzed by way of immunohistochemistry to guage the inflammatory response throughout completely different teams. The management group demonstrated considerably larger MPO expression in comparison with the opposite therapy teams. The PPD-lipo group confirmed barely elevated ranges, whereas the HMs group and PPD-Lipo@HMs group exhibited decrease expression (Fig. 9b and e), suggesting that the management group remained in an inflammatory stage, whereas the PPD-Lipo@HMs group successfully mitigated the inflammatory response on the wound web site, thereby expediting wound tissues restore.

The PPD-Lipo@HMs, consisting of the pure lively ingredient PPD and pure polysaccharides, are fabricated utilizing microfluidic expertise and a photocrosslinking methodology. These PPD-Lipo@HMs exhibit outstanding swelling properties that may successfully improve blood vessel formation and macrophage polarization, finally facilitating the therapeutic of diabetic wounds.

Fig. 9
figure 9

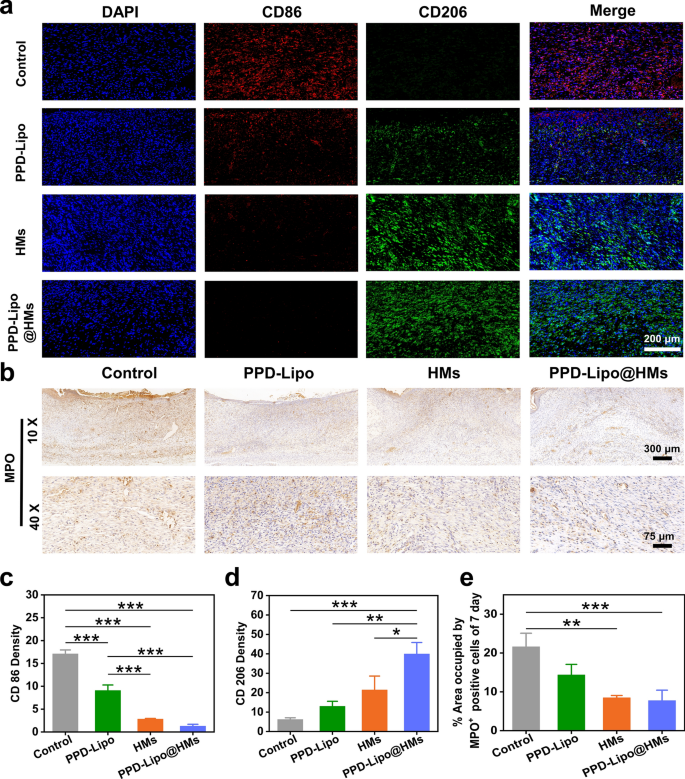

Impact of PPD-Lipo@HMs on the inflammatory microenvironment of faulty pores and skin. a Consultant photos of CD86 and CD206 immunofluorescence on day 7. Scale bar: 200 μm. b Consultant photos of MPO immunohistochemistry in 10× and 40× fields on the seventh day. Scale bar: 300 μm and 75 μm. c The quantification for CD86 density from completely different teams. d Quantitative evaluation of CD206 immunofluorescence density in several teams. e Quantitative evaluation of MPO immunohistochemistry in several teams. The information are expressed as imply ± SD. n ≥ 3. * p < 0.05, ** p < 0.01, *** p < 0.001

Related Articles

LEAVE A REPLY

Please enter your comment!
Please enter your name here

Latest Articles
