Microenvironment-optimized gastrodin-functionalized scaffolds orchestrate uneven division of recruited stem cells in endogenous bone regeneration | Journal of Nanobiotechnology


Examine design

As essentially the most generally used organic analysis technique, each the bone regeneration results in vivo and mobile experiments in vitro play an necessary function within the purposeful research of biomaterials. Nonetheless, little is thought of the destiny and bioactivity of cell response to the implant. It’s crucial to decipher the distinct destiny of stem cells after scaffold remedy throughout the regeneration of faulty bone. This research was aimed to develop a technique to determine endogenous bone regeneration mechanism triggered by gastrodin-PU/n-HA. The scaffolds had been ready as osteoinductive implants to information the regeneration of osteoporotic bone defects. The scaffolds had been then implanted into condyles of femur in an osteoporotic rat mannequin. The adjustments in serum and tissue inflammatory markers had been first monitored throughout implantation. Moreover, sequential cell extraction was carried out to discover the cell recruitment and reveal the time course of stem cell destiny, specializing in the stability between stem cell inhabitants and osteo-differentiation through ACD. New bone regeneration inside and adjoining to the scaffolds was lastly assessed by micro-computed tomography (micro-CT) scanning and histological staining. Subsequently, histological, immunohistochemical (IHC) staining had been carried out to discover the potential osteogenic mechanism of the scaffolds.

Preparation and characterization of scaffolds

Fabrication of scaffolds

Scaffolds had been efficiently synthesized by in situ foaming technique in response to our beforehand reported technique [18]. Briefly, PCL-2000 (30.00 g) and n-HA (11.40 g) had been combined in a 250 mL three-necked flask beneath nitrogen constantly and heated at 70 ℃, stirred with IPDI (9.17 g) for two h to acquire the prepolymer. Then 3.70 g of Lys-OEt·2HCl was used to increase the prepolymer for two h. After that, gastrodin of various contents (set as 0, 2, and 5 wt%) was added, adopted by 1 mL NaHCO3 resolution. The resultant combination was cured at 90 ℃ for subsequent use.

Characterization

For the degradation and gastrodin launch research, the scaffolds (~ 0.20 g) had been immersed in 0.1 M and 0.5 M NaOH resolution at 37 ℃ water tub, respectively. At 3/7, 1, 2, 3, 4, 5, 6, 7, 8 weeks, the residual weight and launched gastrodin of every specimen had been recorded. Micro-CT (Hiscan, China) and scanning electron microscopy (SEM) (Zeiss, Germany) had been carried out to watch the microstructure of the scaffolds, and the porosity was quantified by dragonfly software program (ORS, Canada). Mechanical properties had been measured on a common testing system (Instron, USA).

Surgical procedures

The scaffolds had been reduce into cylinder (Ø 3 × 3 mm) and sterilized by γ-ray irradiation with 15 kGy prior to make use of. The animal experiments had been authorized by the Institutional Animal Care and Use Committee of Kunming Medical College (China). Feminine Sprague-Dawley (SD) rats weighing 200 to 300 g had been anesthetized with 3% sodium pentobarbital (30 mg/kg) and subjected to a regular bilateral ovariectomy (OVX) as described [28]. Three months after OVX, the osteoporotic rats had been randomized into three teams: management, PU/n-HA, and 5% gastrodin-PU/n-HA. After publicity of lateral femoral condyle, a drill-hole defect with a diameter of three mm and a depth of three mm was created beneath plentiful irrigation. The bone fragments had been washed out from the cavity earlier than the implantation of scaffolds, adopted by repositioning and suturing of the tissue layers. The management group was operated with out implantation of scaffolds. At postoperative days 3, 7, 14, and 28, rats had been anesthetized for the peripheral blood harvesting. After sacrificing by cervical dislocation, bone marrow, and femur had been additionally harvested for subsequent evaluation.

Stem cells preparation

Bone marrow mesenchymal stem cells (BMSCs) had been remoted from femurs in response to our beforehand reported process [18] with minor revisions. At postoperative days 7 and 14, the femurs had been soaked in 75% ethanol for 10 min after which washed with phosphate buffer saline (PBS, Solarbio, China). After each ends of the femur had been eliminated, a disposable aseptic syringe drawing an entire medium consisting of α-minimum important medium (α-MEM, Gibco, USA) supplemented with 10% fetal bovine serum (FBS, Gibco, USA) and 1% penicillin/streptomycin (Gibco, USA) was used to repeatedly wash the bone marrow cavity. About 4 mL of BMSCs suspension was obtained from two femurs of a rat, which was break up into three parts: centrifuge tube (300 µL), T25 cell tradition flask (300 µL), and tradition plates (100 µL in 24-well plate and 200 µL in 6-well plate). Subsequent, the BMSCs transferred to tradition flasks and tradition plates had been additional incubated at 37 °C, 5% CO2, and 95% humidity. The entire medium was used for follow-up experiments and altered each 3 days until in any other case acknowledged.

For long-bone-derived skeletal stem cells (SSCs), femurs had been dissected. After flushing out the bone marrow cells, the femurs with implants had been then chopped into small items and digested by collagenase II (Sigma, U.S., 1 mg/mL) at 37℃ for 1 h. The digested cells had been cultured in full medium and allowed for purposeful evaluation (See Scheme 2).

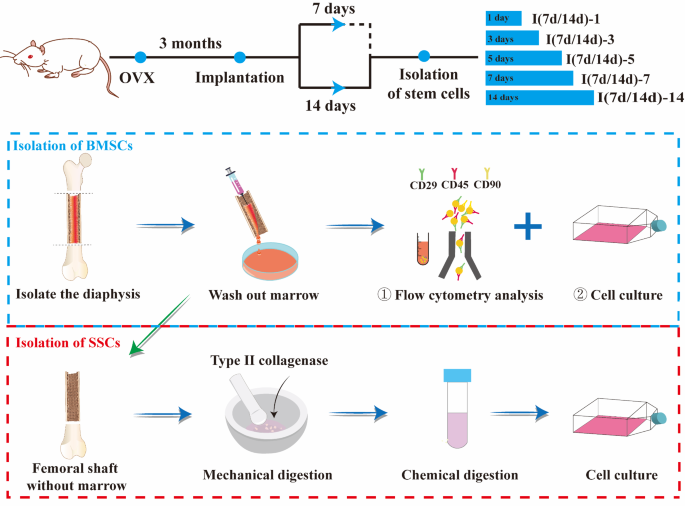

Scheme 2
scheme 2

Schematic illustration of the experimental define. SD rats had been subjected to a regular bilateral ovariectomy (OVX) and scaffolds had been implanted into femoral condyle defect after 3 months. The stem cells had been remoted and picked up at 7 and 14 days, and additional incubated for 1, 3, 5, 7, and 14 days for evaluation

Endogenous stem cell recruitment

Move cytometry (FC)

BMSCs in every tube had been filtered with a 70 μm strainer to yield single cell suspensions. The cells had been then incubated with purple blood cell lysis buffer on ice, after which they had been centrifugated and resuspended in FC sorting buffer (PBS with 10% FBS). Cells had been stained with armenian hamster anti mouse/rat monoclonal antibodies CD29-APC (No.: 102215), mouse anti-rat monoclonal antibodies CD45-PE/CY7 (No.: 202213), and CD90-PE (No.: 205903) (Biolegend, USA) (1:200) in response to the producer’s protocol.  FC was carried out utilizing CyFlow® House (Partec, Germany), and information evaluation was carried out with FlowJo 10.5.3 software program.

EdU incorporation assays

BMSCs had been seeded in 24-well plates (100 µL/properly) and maintained in tradition. At 3 and seven days, exponentially rising cells had been stained with a Click on-iT 5-ethynyl-2’-deoxyuridine (EdU) Alexa Fluor 594 Imaging Package and nuclei had been stained with Hoechest (Beyotime, China). Photographs had been captured utilizing a fluorescence microscope (Olympus, Japan). The numbers of EdU-positive cells had been additional counted by ImageJ software program. The share of proliferating cells was calculated for every pattern relative to the whole variety of Hoechest-positive cells.

Colony-forming unit fibroblast formation assay (CFU-F assay)

Self-renewal of BMSCs was assessed by a CFU-F assay. After being cultured in a 24-well plate (100 µL/properly) for 7 days, cells had been mounted and stained with crystal violet resolution (Beyotime, China).

Transwell-migration assay

A transwell chamber (24-well plate, 8 μm pore measurement, Corning Included, USA) was used to guage the cell migration of retrieved scaffolds. The retrieved scaffolds had been achieved from implants inside osteoporotic bone defects or subcutaneous tissue after 7 and 14 days. Wholesome 3-week-old rats served as donors of main BMSCs, which had been subcultured to the third passage (P3 BMSCs) in response to the established process. Subsequently, 0.1 mL P3 BMSCs suspension (5 × 104 cells/mL) was added to the higher chamber. Alternatively, the retrieved scaffolds had been positioned within the decrease chamber with 0.6 mL full media. After 3 and 7-day incubation, the cells had been mounted with 4% paraformaldehyde and stained with crystal violet. The non-invaded cells on the upside of the transwell had been eliminated with a cotton swab, and the migrated cells to the underside had been examined in three random fields beneath a light-weight microscope. In the meantime, the medium was collected and used for analysis of secretion of SDF-1α and TGF-β cytokines with enzyme-linked immunosorbent assay (ELISA) kits (mlbio, China) following the producer’s steerage.

Purposeful evaluation of stem cells

Mitochondrial exercise of BMSCs

BMSCs had been cultured with full medium in 24-well plates for 7 and 14 days. At every time level, samples had been stained with MitoTracker® Crimson CMXRos (Solarbio, China, No.: M9940) for energetic mitochondria. After fixation with 4% paraformaldehyde resolution, the samples had been stained with phalloidin (Solarbio, China, No.: CA1640) for actin and DAPI (Abcam, USA, No: ab104139) for nuclei. The mitochondrial membrane potential was detected utilizing a probe 5,5’,6,6’-Tetrachloro-1,1’,3,3’-tetraethylbenzimidazolylcarbocyanine iodide (JC-1) assay equipment (Solarbio, China, No.: J8030) in response to the producer’s directions.

For immunofluorescence (IF) staining, the wells had been washed and glued with 4% paraformaldehyde for 15 min at room temperature. The samples had been then permeabilized in 0.1 % Triton X-100 for 20 min. Subsequent, 5 % goat serum in PBS was added to the wells for two hours, adopted by publicity to main antibody cocktail, which was incubated in a single day at 4 °C. The first antibody concerned mitochondrially encoded cytochrome C oxidase 2 (Mtco2), translocase of the outer mitochondrial membrane (TOM20), ATP synthase subunit alpha (ATP5A1), peroxisome proliferator-activated receptor-gamma coactivated 1α (PGC1α). Mtco2 (1:200), TOM20 (1:200), cocktail ATP5A1 (1:1000) and PGC1α (1:200) in 5% goat serum in PBS had been used. The secondary antibodies had been as follows: CoraLite488-conjugated goat anti-rabbit IgG (1:500, SA00013-2), CoraLite594-conjugated goat anti-rabbit IgG (1:200, SA00013-4), CoraLite594-conjugated goat anti-rabbit IgG (1:200, SA00013-4) and CoraLite488-conjugated goat anti-mouse IgG (1:500, SA00013-1). Imply optical density of the proteins was measured by Picture J software program. Every group comprised greater than three wells, and every properly was confirmed with cells collected from a minimum of three separate animals. The associated genes and proteins had been additional assessed as acknowledged above.

Immunofluorescence staining of cells

BMSCs had been seeded on coverslips in 24-well plates (100 µL/properly) and cultured for 1, 3, 5, and seven days. IF staining was carried out as indicated within the part IF staining of mitochondria. The next main antibody cocktails in 5% goat serum in PBS had been used: octamer-binding transcription issue 4 (OCT4) (1:200) and osterix (OSX) (1:200), β-catenin (1:2,000) and atypical protein kinase C (aPKC) (1:200). After rinsing with 0.05% PBST, the wells had been incubated with secondary antibody cocktails for two h at room temperature. The secondary antibodies had been as follows: CoraLite488-conjugated goat anti-rabbit IgG (1:500) and CoraLite594-conjugated goat anti-mouse IgG (1:200), CoraLite488-conjugated goat anti-mouse IgG (1:500) and CoraLite594-conjugated goat anti-rabbit IgG (1:200), of which the previous corresponded to OCT4/OSX and the latter to β-catenin/aPKC cocktails. Lastly, DAPI staining was carried out for two h at room temperature. In parallel, the SSCs had been additionally processed for the aforementioned IF staining.

Imaging and evaluation of ACD course of

All of the imaging stacks had been captured and processed utilizing a confocal laser scanning microscope (CLSM) (Zeiss LSM 880, German) and Zen blue version 3.3 software program connected to the microscope. Briefly, z-stacks with 20 z-planes had been acquired consecutively at a 1-µm z-step for every quantity. Every z-stack was 3D-reconstructed and offered most depth projections onto frontal X/Y, transverse (X/Z), and sagittal (Y/Z) planes. To calculate the proportion of the uneven stem cell division, 20 cell pairs had been blindly chosen from every pattern. The imply fluorescence depth and distribution of the protein markers in paired daughter cells had been measured, adopted by normalization between the 2 newly fashioned daughter cells.

ACD-related gene expression

After the cells had been subsequently cultured for 3 and seven days, the ACD-related genes resembling OCT4, OSX, β-catenin and aPKC had been evaluated by reverse transcription quantitative polymerase chain response (RT-qPCR). The primer sequences are described in Desk S1. Every pattern was carried out in triplicates and repeated for 3 impartial assays to realize comparable outcomes.

Endogenous new bone formation

Inflammatory/immune response evaluation

At postoperative days 3, 7, 14, 28, the peripheral blood was collected in anticoagulant tubes for evaluation utilizing hematology analyzer (Sinnowa, China). The serum was derived from peripheral blood by centrifugation at 4000 rpm for 15 min. The content material of inflammatory components (Tumor Necrosis Issue-α (TNF-α) and interleukin-1β (IL-1β)) and reactive oxygen species (ROS) degree in serum had been detected by ELISA assay equipment (Nanjing Jiancheng, China) in response to the producer’s directions. Tissue samples from the encircling areas had been collected and saved at -80 ℃ for the follow-up experiments. Whole mRNA was extracted from bone tissue for evaluation of macrophage phenotype biomarker genes, inducible nitric oxide synthase (iNOS) and arginase-1 (Arg-1).

Histological staining of tissue sections

The mounted samples had been decalcified in 10% EDTA resolution for 1 month, dehydrated by gradient ethanol, after which embedded in paraffin. Serial 5-µm thick sections had been reduce on a microtome (Leica Biosystems, Germany). The tissue sections had been stained with Hematoxylin and eosin (H&E) (Solarbio, China), Masson’s trichrome (Solarbio, China), and Movat’s pentachrome (Solarbio, China) in response to the provided technique by the producer. Consultant part pictures had been captured with a light-weight microscope (Olympus, Japan).

Immunohistochemistry staining of tissue sections

Tissue sections had been incubated with a 3% H2O2 resolution in methanol for endogenous enzyme quenching and handled with 0.1% trypsin-EDTA (Gibco, 25200056) to retrieve the antigen. After blocking with 5% goat serum for 1 h at 37 °C, the specimens had been incubated in a single day at 4 °C with main antibodies in opposition to CD146 (1:200) for stem cell floor markers, BMP-2 (1:200) for osteogenesis markers, Arg-1 (1:200) for an M2 marker, and iNOS (1:200) for an M1 marker, as listed in Desk S2. The sections had been washed with TBST earlier than incubation with the secondary antibodies for two h. Sections had been additional incubated with secondary antibodies (Enhanced enzyme-labeled goat anti-mouse IgG polymer and Enhanced enzyme-labeled goat anti-rabbit IgG polymer), after which with DAB reagents (Diaminobenzidine tetrahydrochloride staining, Boster Organic Know-how Co. Ltd., China), adopted by counterstaining with hematoxylin. The sections had been mounted previous to imaging. Brown staining localization inside the defects indicated constructive expression of the biomarkers beneath an optical microscope. The constructive cell ratio of the proteins was calculated by software program Picture J and GraphPad Prism v8.0. Every kind of staining was confirmed in tissues from greater than three separate rats.

Micro-computed tomography (micro-CT) evaluation

4 weeks after implantation, femurs had been collected and glued in 4% paraformaldehyde for 3 days. The mounted samples had been scanned utilizing micro-CT (Pingseng scientific, China) at a decision of seven.5 μm with a voltage of 90 kV and a present of 60 µA. Throughout the reconstruction, a threshold between 1000 and 3000 was utilized to discriminate the bone tissue, and a threshold between 600 and 1000 was utilized to discriminate the scaffold. Three-dimensional (3D) and two-dimensional (2D) evaluation had been carried out utilizing Avatar3 software program connected to the micro-CT. 3D reconstructed constructions of the distal femur had been acquired from the segmented dataset for visible inspection. For the quantitative analysis of osteogenesis inside defects, a constant cylinder at a diameter of two.5 mm and a top of two.5 mm was chosen because the area of curiosity (ROI) to signify remnant scaffold and regenerated bone. To check the impact of the scaffolds on adjoining bone loss, one other rectangular ROI (0.5 × 0.5 × 2 mm3) adjoining to the defect, which was 1.5 mm away from the epiphyseal development plate, was additionally chosen and analyzed. The structural parameters of recent bone and trabecular bone, together with bone mineral density (BMD), trabecular bone quantity fraction (BV/TV), trabecular quantity (Tb.N), trabecular thickness (Tb.Th), and trabecular separation (Tb.sp), had been calculated by the micro-CT scans.

Statistical evaluation

Knowledge had been reported as means ± commonplace deviation (SD). One-way evaluation of variance (ANOVA) was utilized for statistical comparisons amongst greater than two teams, and a t-test was used for statistical comparisons between two teams. All statistical analyses had been carried out utilizing GraphPad Prism v8.0.2. Statistical significance was accepted at P < 0.05.
