Characterization of LMOFs

With a purpose to realise the facile evaluation for biothiols, a tricolor upconversion fluorescence sensor array primarily based on R/G/B-LMOFs was additional developed. The core − shell construction R/G/B-LMOFs supplies have been designed and synthesised by introducing MOFs cladding layer onto the floor of the corresponding R/G/B-UCNPs in a facile technique, the place zirconium (IV)-based UiO-type MOFs bridged by BPy-DCA ligands was in situ paved with R/G/B-UCNPs by self-assembly pushed by electrostatic interplay (Scheme 1A). The obtained three LMOFs supplies have been additional analysed to evaluate their elemental composition, morphology, XRD, FT-IR, UV-Vis, TGA and fluorescence traits. The corresponding important elemental composition within the ensuing R-UCNPs (Y, Tm and Er), G-UCNPs (Y, Yb and Er), B-UCNPs (Y, Yb and Tm), R-LMOFs (Zr, Y, Tm and Er), G-LMOFs (Zr, Y, Yb and Er), and B-LMOFs (Zr, Y, Yb and Tm) have been noticed (Fig. S1), which confirmed that Zr (IV)-based MOFs have been efficiently assembled with the corresponding UCNPs, respectively. The SEM picture of the ensuing R/G/B-LMOFs exhibited an identical agglomerated granular construction with MOFs (Fig. S2), and the TEM morphology of R/G/B-LMOFs revealed the same core − shell construction with common measurement about 40–50 nm, whereby the MOFs layer (about 7 nm thick) was assembled onto the hexagonal section R/G/B-UCNPs (about 30–40 nm) (Fig. 1A and C and Fig. S3), which indicated that the core − shell construction R/G/B-LMOFs supplies have been efficiently synthesized. The investigation of crystal construction revealed that the diffraction peaks of the ensuing R/G/B-LMOFs built-in the attribute peaks of pure MOFs and the corresponding R/G/B-UCNPs outfitted with the pure hexagonal section of NaYF₄ (JCPDS no. 16–0334) (Fig. 1D). The corresponding purposeful group info of R/G/B-LMOFs in FT-IR spectroscopy confirmed that the seen attribute stretching vibrations peaks of R/G/B-LMOFs have been just like the pure MOFs. The rising attribute peak (1659, 1668, and 1682 cm^− 1) have been related to the C-N stretching frequency of pyridine teams on R/G/B-LMOFs in contrast with R/G/B-UCNPs (Fig. 1E), which indicated that the MOFs layer was lined onto the floor of UCNPs. In the meantime, TGA revealed that each one the three R/G/B-LMOFs have good thermal stability (Fig. S4).

(A) Schematic diagram of the synthesis of R/G/B-LMOFs, (B) Schematic illustration of sample recognition for biothiols primarily based on R/G/B-LMOFs fluorescence sensor array

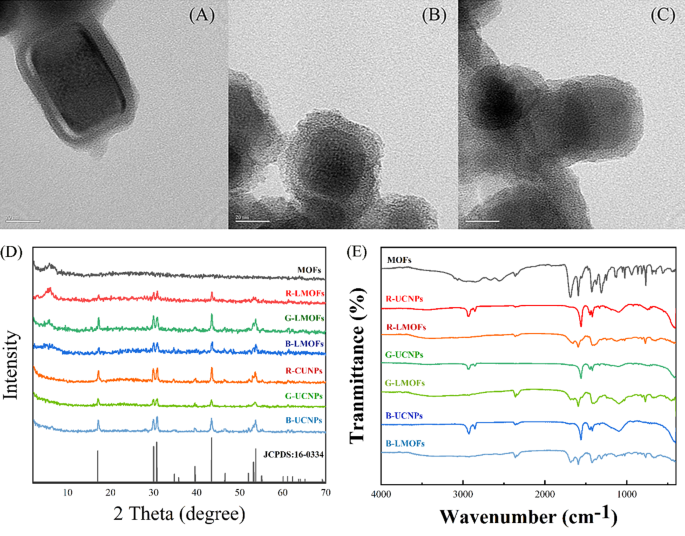

TEM of R-LMOFs (A), G-LMOFs (B), B-LMOFs (C), XRD (D), and FT-IR spectroscopy (E) of R/G/B-LMOFs

The fluorescence emission spectra of the obtained R/G/B-LMOFs supplies have been measured underneath an excitation wavelength of 980 nm (Fig. S5), which exhibited the attribute spectra of the corresponding core R/G/B-UCNPs because of the photon power degree transition and power switch of the totally different doping components in UCNPs, the place the principle crimson emission (665 nm) of R-UCNPs (NaYF₄:Er/Tm) is equivalent to 4F_9/2→4I_15/2 transitions of Er³⁺ within the power switch between Er³⁺ and Tm³⁺, the principle inexperienced emission (550 nm) of G-UCNPs (NaYF₄:Yb/Er) is equivalent to 4S_3/2→4I_15/2 transitions of Er³⁺ within the power switch between Yb³⁺ and Er³⁺, and the principle blue emission (485 nm) of B-UCNPs (NaYF₄:Yb/Tm) is equivalent to 1G₄→3H₆ transitions of Tm³⁺ within the power switch between Yb³⁺ and Tm³⁺. In the meantime, the fluorescence emission depth of R/G/B-LMOFs have been stronger than that of the corresponding core R/G/B-UCNPs, which might be resulted from that the inert MOF shell adjusted the lattice defects on the floor of the core UCNPs and/or the inert MOF shell served as a spacer matrix to isolate the quenching impact of solvent molecules [6]. The quantum yield and fluorescence lifetime investigation additional confirmed the superb optical properties of R/G/B-LMOFs (Desk S1). These outcomes demonstrated that the R/G/B-LMOFs-based sensors may present glorious upconversion luminescence properties and considerable bipyridine purposeful websites within the fluorescence sensing.

Fluorescence response mechanism of LMOFs

Usually, the bipyridine teams can coordinate selectively with Cu²⁺, which may reinforce the interplay of LMOFs to Cu²⁺ than that of the core UCNPs to Cu²⁺. As anticipated, three R/G/B-LMOFs revealed extra stronger fluorescence quenching to Cu²⁺ than that of the corresponding core R/G/B-UCNPs because of the introduction of MOFs with bipyridine teams to UCNPs (Fig. S6). The fluorescence response mechanism of LMOFs to Cu²⁺ was additional explored. The looks of a small blue shift in UV-Vis spectrum was ensuing from the interplay between R/G/B-LMOFs and Cu²⁺, which preliminary implied the formation of cupric bipyridine coordinates (Fig. S7). The absorption band that resulted from the interplay of Cu²⁺ with MOFs aren’t overlapped with the fluorescence emission peaks of R/G/B-LMOFs, which might be inferred that the Cu²⁺-induced fluorescence quenching of R/G/B-LMOFs might be attributable to the power switch relatively than the inner-filter impact (Fig. S8). Impressed by earlier research, the potential power switch mechanism concerning the Cu²⁺-induced fluorescence quenching of R/G/B-LMOFs was proven in Fig. 2, whereby the power switch mechanism of Er³⁺, Tm³⁺, and Yb³⁺-assisted upconversion course of within the NaYF₄ underneath excitation of 980 nm might be disturbed by Cu²⁺. Because of the potential overlap between lanthanide steel ions-trimer luminescence peak with the absorption spectrum of cupric bipyridine coordinates, the current Cu²⁺ on the floor of LMOFs may disturb the power switch from Er³⁺ to Tm³⁺(R-LMOFs), Yb³⁺ to Er³⁺(G-LMOFs), and Yb³⁺ to Tm³⁺(B-LMOFs), and the corresponding power switch was transferred to the ¹D₂ degree of Cu²⁺, forming the non-radiative transition from the de-excitation of Cu²⁺ to the bottom state [28]. Such outcomes supported the power switch mechanism in LMOFs-based sensing system for Cu²⁺. In the meantime, R/G/B-LMOFs confirmed apparent fluorescence response to Cu²⁺ than that of different divalent steel ions and biomolecules (Fig. S9). After optimizing the sensing circumstances (Fig. S10), the fluorescence depth of all of the three R/G/B-LMOFs step by step decreased with the growing of Cu²⁺ (5.0 × 10^-8-1.0 × 10^− 6 M) and the plots of the fluorescence quenching diploma ((F₀-F_i)/F₀) versus Cu²⁺ exhibited an excellent linear correlation, which additionally exhibited a sure of fluorescence response distinction between the three R/G/B-LMOFs to Cu²⁺ (Fig. S11). Herein, we speculated that the fluorescence response of R/G/B-LMOFs to Cu²⁺ might be disturbed by some targets that may mix with Cu²⁺, and their fluorescence response distinction might be enlarged to kind the distinctive fluorescence fingerprint of the targets. Impressed by the straightforward coordination of Cu²⁺ with sulfhydryl teams, biothiols have been launched into the sensing platform of LMOFs and Cu²⁺ to confirm the speculation. GSH was chosen as mannequin biothiols to discover the fluorescence response mechanism within the sensing platform of R/G/B-LMOFs and Cu²⁺. All of the three R/G/B-LMOFs exhibited apparent fluorescence quenching to Cu²⁺, whereas little fluorescence response to GSH. As anticipated, the launched GSH can affect the fluorescence quenching of R/G/B-LMOFs triggered by Cu²⁺ because of the aggressive binding between GSH with Cu²⁺ (Fig. 3). Below the optimum working circumstances (Fig. S12), the fluorescence depth of R/G/B-LMOFs elevated with the rise of GSH content material (5.0 × 10^-5-1.0 × 10^− 7 M) and the plot of fluorescence response ((F_i-F₀)/F₀) versus the logarithm of GSH focus confirmed an excellent linear relationship (Fig. S13). The fluorescence response within the three R/G/B-LMOFs might be employed because the distinctive fingerprint of GSH, and the popularity fingerprint of different biothiols might be additional obtained from the sensing platforms.

The believable power switch mechanism from R/G/B-LMOFs to Cu²⁺

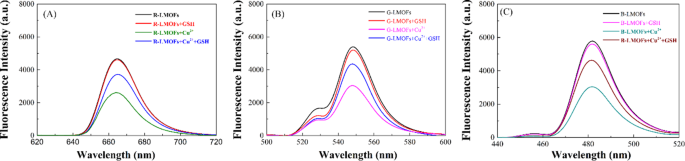

Fluorescent response of Cu²⁺ and GSH to (A) R-LMOFs, (B) G-LMOFs and (C) B-LMOFs

Sample recognition of biothiols utilizing R/G/B-LMOFs fluorescence sensor array

By advantage of the near-infrared characteristic and glorious responsiveness, three R/G/B-LMOFs have been employed to assemble a tricolor upconversion fluorescence sensor array for the sample recognition of 5 biothiols (together with GSH, HCY, NAC, and D/L-CYS) (Desk S2), whereby every R/G/B-LMOFs may reply to biothiols and the traits of every biothiols might be mirrored by the generated options fluorescence sign from the cross-reactive of R/G/B-LMOFs in a singular method (Scheme 1B). Below the optimum working circumstances, 5 biothiols have been detected within the R/G/B-LMOFs fluorescence sensor array, three R/G/B-LMOFs confirmed vital fluorescence response ((F_i-F₀)/F₀) towards 5 sorts of biothiols (100 µM), which was common and carefully associated to biothiols (Fig. 4A). The obtained fluorescence alerts have been additional skilled in a matrix (R/G/B-LMOFs × 5 biothiols × 8 replicates) to maximise the separation potential because the “identification fingerprints” of biothiols by utilizing LDA, which might be employed to categorise, separate, and establish biothiols with the linear mixture of options by changing the coaching matrix into canonical scores in keeping with Mahalanobis distance. The generated three canonical components (73.8%, 23.8% and a couple of.4%) for the full variance have been plotted into the 2D determine, the place every type of biothiols was well-clustered with none overlap, discriminating totally from one another (100% accuracy) (Fig. 4B). In the meantime, the dendrogram of 5 biothiols have been clustered independently in keeping with the classes by HCA (Fig. 4C), and the distinction amongst 5 biothiols within the three R/G/B-LMOFs channels additionally was displayed by the warmth mapping (Fig. 4D), which revealed the nice potential of the R/G/B-LMOFs fluorescence sensor array in distinguishing biothiols. Inspired by such outcomes, the R/G/B-LMOFs fluorescence sensor array was additional employed to confirm the popularity potential of 5 biothiols at a decrease focus (50 µM), and the outcomes of LDA, HCA and heatmapping demonstrated a greater sample recognition with excessive accuracy in the direction of the low focus biothiols (Fig. S14 and S15), which displayed a better sensitivity over the earlier report (100 µM) [29, 30]. Delightedly, we discovered that the 2 chiral enantiomers biothiols (L-Cys and D-Cys) have been unbiased of one another within the LDA, HCA and heatmapping, which was highlighting the capability for chiral recognition.

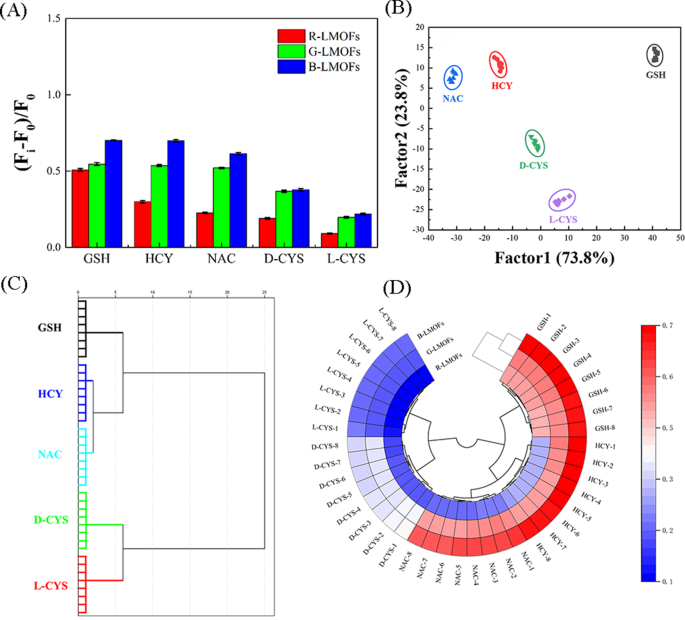

(A) Sign patterns of the relative fluorescence selection ((F_i-F₀)/F₀) of the R/G/B-LMOFs fluorescence sensor array within the presence of 5 biothiols (100 µM). (B) Canonical rating plot of 2D for the response patterns of biothiols obtained from LDA. Every level represents the response sample for single biothiols species. (C) Dendrogram generated by HCA of 5 biothiols, and (D) Ring warmth mapping of 5 biothiols

To additional discover the efficiency of the R/G/B-LMOFs fluorescent sensor array, the totally different molar ratios of L-Cys and D-Cys mixtures might be totally distinguished by the R/G/B-LMOFs fluorescence sensor array and the obtained first discriminant Issue 1 values range with the proportion of the 2 L/D-Cys (Fig. 5A and B), which was cost-effective and straightforward to make use of than that of the normal chromatographic strategies. In the meantime, the totally different focus of GSH might be separated in LDA rating plot (Fig. 5C), and the primary discriminant Issue 1 values have been linearly associated to the logarithm of the concentrations of GSH (Fig. 5D), and the same evaluation outcomes might be discovered within the different biothiols (NAC, HCY, and L/D-CYS) (Fig. S16), which demonstrated the feasibility of the proposeded fluorescence sensor array within the quantitative evaluation.

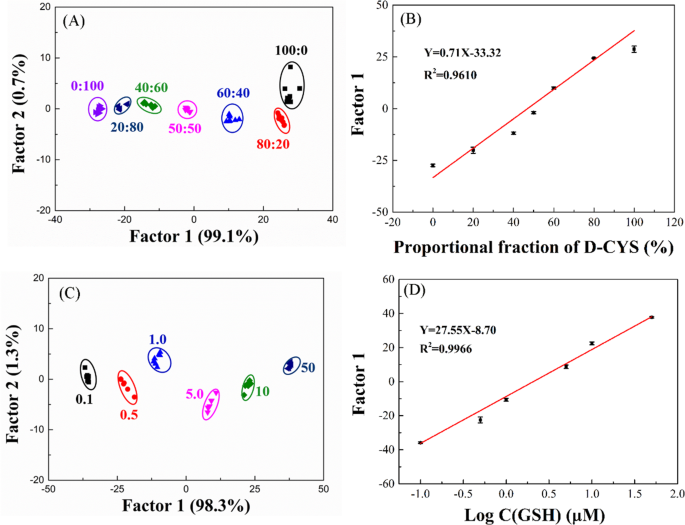

(A) Canonical rating plot towards the mixtures of L-CYS and D-CYS by LDA. (B) Variation curve of Issue 1 values and the combination of L-CYS and D-CYS. (C) Canonical rating plot towards totally different concentrations of GSH by LDA. (D) The linear becoming curve representing relationship between the totally different concentrations of GSH and Issue 1 values

Identification of biothiols in actual samples

The sensible utility of the proposed R/G/B-LMOFs fluorescence sensor array was additional investigated in tea beverage and white wine samples. Commonplace addition methodology was employed by spiking recognized quantities of biothiols (100 µM) into samples extraction, and 30 unknown biothiols have been spiked in tea drink and white wine samples respectively and randomly picked from the matrix (Desk S3–S6). The blind exams exhibited 90.0% accuracy in biothiols discrimination and the outcomes have been dependable in tea drink with 93.3% accuracy, which is larger than that of white wine (86.7%) (Desk 1), which indicated the nice sensible purposes potential of the developed fluorescent sensor array for biothiols detection.
