Preparation and characterization of Axi/siRNAPD−L1@NGR-Lipo

Firstly, DSPE-PEG2000-NGR was obtained by the thiol-ene “click on” response of the maleimide group in DSPE-PEG2000-MAL and the sulfhydryl group on the cysteine on the finish of the NGR peptide (Fig. S1). The ¹H-NMR spectrum demonstrated that the attribute peak of maleimide at 6.8 ppm was current within the spectrum of DSPE-PEG2000-MAL, whereas disappearing in DSPE-PEG2000-NGR (Fig. S2), indicating the profitable conjugation of the maleimide group to sulfhydryl group. The MALDI-TOF outcomes offered that the key peaks of DSPE-PEG2000-MAL, NGR and DSPE-PEG2000-NGR had been 2275.4, 783.31 and 2872.8, respectively, which had been considerably in line with the theoretical molecular weights, thus additional indicating the profitable synthesis of DSPE-PEG2000-NGR (Fig. S3).

Subsequently, Professional-siRNA^PD−L1 complexes had been shaped by self-assembly by way of the cost interplay of protamine with siRNA^PD−L1. The outcomes of agarose gel electrophoresis revealed that siRNA^PD−L1 might be utterly solidified when the mass ratio of protamine to siRNA^PD−L1 exceeded 3:1 (Fig. 2A). Because the mass ratio elevated, though siRNA^PD−L1 was absolutely consolidated, the particle measurement of the Professional-siRNA^PD−L1 complexes additionally turned too massive to fulfill the scale of nanocore (Fig. 2B). Therefore, the mass ratio of protamine to siRNA^PD−L1 was 3:1 because the optimum ratio for the preparation of Professional-siRNA^PD−L1 complexes.

Subsequent, Axi was encapsulated in liposomes by thin-film dispersion, and finally, Axi/siRNA^PD−L1@NGR-Lipo was obtained by co-extruding liposomes with Professional- siRNA^PD−L1 complexes utilizing a lipid extruder. The typical measurement and particle measurement distribution of the ready nanoparticles had been measured by dynamic gentle scattering (DLS). The typical particle sizes of Professional-siRNA^PD−L1, Axi/siRNA^PD−L1@Lipo and Axi/siRNA^PD−L1@NGR-Lipo had been 120.1 nm, 159.8 nm and 156.2 nm, with PDI of 0.260, 0.109 and 0.156, respectively (Fig. 2C). Moreover, DLS measurements of zeta potential displayed that the floor potentials of Professional-siRNA^PD−L1, Axi/siRNA^PD−L1@Lipo and Axi/siRNA^PD−L1@NGR-Lipo had been 13.53 mV, -7.88 mV and  -14.13 mV, respectively (Fig. 2E). The encapsulation of Professional-siRNA^PD−L1 by liposomes shifted the floor cost from constructive to unfavourable however with little change in particle measurement, which enabled exceptional stability in vivo and extended the interval of circulation. To extra intuitively determine the microstructure of the nanoparticles, transmission electron microscopy (TEM) was adopted to look at their floor morphology. Professional-siRNA^PD−L1 displayed irregular spheres, whereas Axi/siRNA^PD−L1@Lipo and Axi/siRNA^PD−L1@NGR-Lipo offered a definite “core-shell” construction (Fig. 2D). The above outcomes comprehensively demonstrated the profitable preparation of Axi/siRNA^PD−L1@NGR-Lipo. Consequently, the colloidal stability of Axi/siRNA^PD−L1@NGR-Lipo was characterised by investigating the change of particle measurement throughout 7 days of storage in water, PBS, 5% glucose and RPMI-1640. As proven in Fig. 2F and Fig. S4, the nanoparticles are effectively stabilized because the particle measurement is under 200 nm for 7 days in numerous media and the particle measurement was no obvious change, with the speed of change inside a 20% vary. These outcomes indicated excellent storage stability of the nanoparticles.

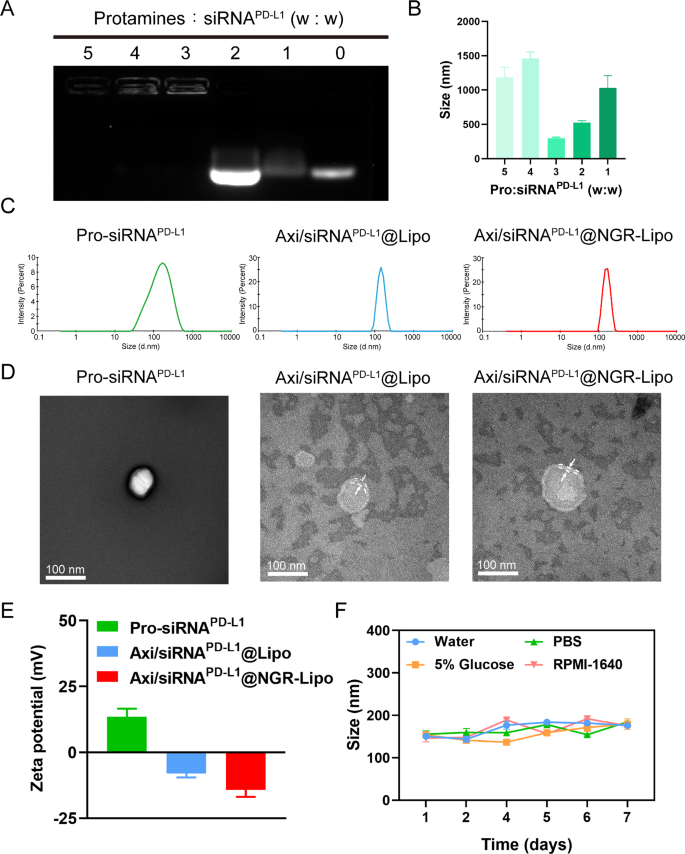

Characterization of assorted preparations. (A) Agarose gel electrophoresis assays of Professional-siRNA^PD−L1 at completely different mass ratios. (B) Particle sizes of Professional-siRNA^PD−L1 at completely different mass ratios. (C) Particle measurement distribution (D) Transmission electron microscopy (TEM) photographs and (E) Zeta potential of Professional-siRNA^PD−L1, Axi/siRNA^PD−L1@Lipo and Axi/siRNA^PD−L1@NGR-Lipo. (F) Storage stability of Axi/siRNA^PD−L1@NGR-Lipo in water, PBS, 5% glucose and RPMI-1640 for 7 days. (n = 3)

In vitro mobile uptake assays

The efficient mobile uptake is the prerequisite for therapeutic efficacy of brokers. As such, Cou-6 as a fluorescent reagent was encapsulated in liposomes as a substitute of Axi to analyze the effectivity of mobile uptake by HUVEC cells and Renca cells. As proven in Figs. S5 and S6, the mobile uptake of Axi/siRNA^PD−L1@NGR-Lipo by HUVEC cells and Renca cells each steadily elevated with the extension of incubation time, presenting a time-dependent sample. Then, the mobile uptake of various formulations by HUVEC cells was visualized by CLSM. As proven in Fig. 3A, Cou-6@NGR-Lipo displayed a extra intense inexperienced fluorescence sign than free Cou-6 and Cou-6@Lipo, suggesting that NGR promoted the mobile uptake of nanoparticles by CD13-overexpressing HUVEC cells. Nonetheless, after pre-incubation with free NGR peptide to saturate the receptor, an apparent lower of inexperienced fluorescence was noticed within the Cou-6@NGR-Lipo group, whereas Cou-6@Lipo exhibited no important alteration, evidencing the mechanism that nanoparticles are engaged into the cell by way of an endocytosis pathway mediated by NGR binding to the CD13 receptor. Quantitative evaluation by stream cytometry adopted the identical pattern as CLSM, with the imply fluorescence depth of Cou-6@NGR-Lipo in HUVEC cells showing 40.4-fold, 2.15-fold and 5.53-fold larger than that of free Cou-6, Cou-6@Lipo and Cou-6@NGR-Lipo + NGR, respectively (Fig. 3C and D). Furthermore, when investigating the mobile uptake of nanoparticles by Renca cells, CLSM photographs revealed the same phenomenon appeared in HUVEC mobile uptake assays, with Cou-6@NGR-Lipo displaying a extra intense fluorescent sign than some other teams (Fig. 3B). Quantitative evaluation by stream cytometry displayed that the imply fluorescence depth of Renca cells handled with Cou-6@NGR-Lipo was 5.05-fold, 3.06-fold and 1.48-fold larger than that of free Cou-6, Cou-6@Lipo and Cou-6@NGR-Lipo + NGR, respectively (Fig. 3E and F). The above outcomes prompt that NGR-modified liposomes may considerably improve mobile uptake by HUVEC cells and Renca cells by binding to the overexpressed CD13 receptor.

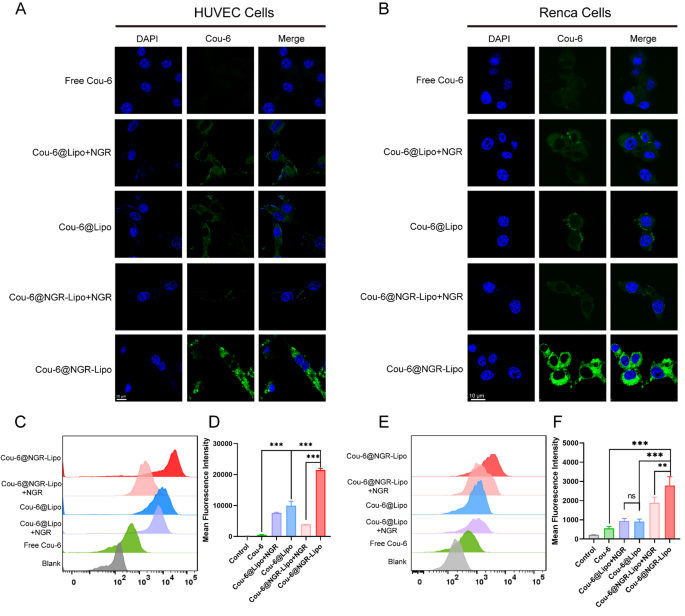

Mobile uptakes in HUVEC cells and Renca cells. Confocal microscopy photographs of mobile uptakes of assorted formulations in HUVEC cells (A) and Renca cells (B). (C) Circulate cytometry evaluation and (D) Quantitative evaluation of mobile uptakes of assorted formulations in HUVEC cells. (E) Circulate cytometry evaluation and (F) Quantitative evaluation of mobile uptakes of assorted formulations in Renca cells. Knowledge had been current as imply ± SD (n = 3). **p < 0.01, ***p < 0.001

In vitro gene silencing and anti-tumor effectivity

It has been reported that PD-L1 protein may inhibit T cell-mediated immune response, promote the exhaustion of effector T cells and trigger immune evasion of tumor cells via binding to PD-1 expressed on activated T cells [32, 33]. PD-L1 expression is considered a predictive biomarker of response to ICI therapies. Right here, we carried out western blot assays to discover whether or not the therapies of the anti-angiogenic drug Axi alone affect the PD-L1 expression on the floor of Renca cells. Astonishingly, from Fig. 4A, we discovered that the expression of PD-L1 protein on the floor of Renca cells was steadily elevated with the concentrations of Axi growing. The improved tumor PD-L1 expression may doubtlessly be used to sensitize tumors to ICI therapies, which supplied a powerful rationale for the mix of Axi with siRNA^PD−L1. This comparable phenomenon was additionally discovered within the beforehand reported research [34]. Subsequently, we investigated the consequences of various preparations together with Management, Axi, siRNA^PD−L1, Axi/siRNA^PD−L1@Lipo and Axi/siRNA^PD−L1@NGR-Lipo on PD-L1 proteins on the floor of Renca cells (Fig. 4B). Much like the above outcomes, free Axi triggered a slight enhance within the expression of PD-L1 protein. In contrast with free siRNA, each Axi/siRNA^PD−L1@Lipo and Axi/siRNA^PD−L1@NGR-Lipo decreased the expression of PD-L1 protein as anticipated, with Axi/siRNA^PD−L1@NGR-Lipo silencing PD-L1 protein most effectively. Thus, Axi/siRNA^PD−L1@NGR-Lipo supplied potent efficacy and substantial benefits in decreasing PD-L1 protein on the floor of Renca cells.

Subsequent, we investigated the toxicity and development inhibition of various brokers on HUVEC cells and Renca cells. The IC50 values of free Axi, Axi/siRNA^PD−L1@Lipo and Axi/siRNA^PD−L1@NGR-Lipo had been 24.36 µg/mL, 17.37 µg/mL and 6.60 µg/mL for HUVEC cells and 39.47 µg/mL, 25.45 µg/mL and 10.95 µg/mL for Renca cells, respectively, as decided by CCK-8 assay, and all of them offered a dose-dependent toxicity (Fig. 4C and D). Axi/siRNA^PD−L1@NGR-Lipo displayed the very best cytotoxicity for HUVEC cells and Renca cells, which can be attributed to the upper NGR-mediated mobile uptake. Moreover, Annexin V-FITC/PI staining was carried out to look at the induction of apoptosis in HUVEC cells and Renca cells by completely different preparations. For HUVEC cells, Axi/siRNA^PD−L1@NGR-Lipo induced probably the most apoptosis, with the share of apoptotic cells in free Axi, Axi/siRNA^PD−L1@Lipo and Axi/siRNA^PD−L1@NGR-Lipo reaching 33.77%, 45.22% and 66.4%, respectively (Fig. 4E and F). An analogous pattern additionally occurred on Renca cells, the place the share of apoptotic cells induced by free Axi, Axi/siRNA^PD−L1@Lipo and Axi/siRNA^PD−L1@NGR-Lipo was 6.58%, 28.27% and 33.5%, respectively (Fig. 4G and H). Moreover, in dwell/useless cell staining assays, cells handled with Axi/siRNA^PD−L1@NGR-Lipo appeared to exhibit substantial pink fluorescence (useless cells) in HUVEC cells (Fig. 4I) and Renca cells (Fig. 4J). Taken collectively, Axi/siRNA^PD−L1@NGR-Lipo demonstrated elevated cytotoxicity and glorious capability to induce apoptosis on each HUVEC and Renca cells, which gave confidence for subsequent in vivo efficacy research.

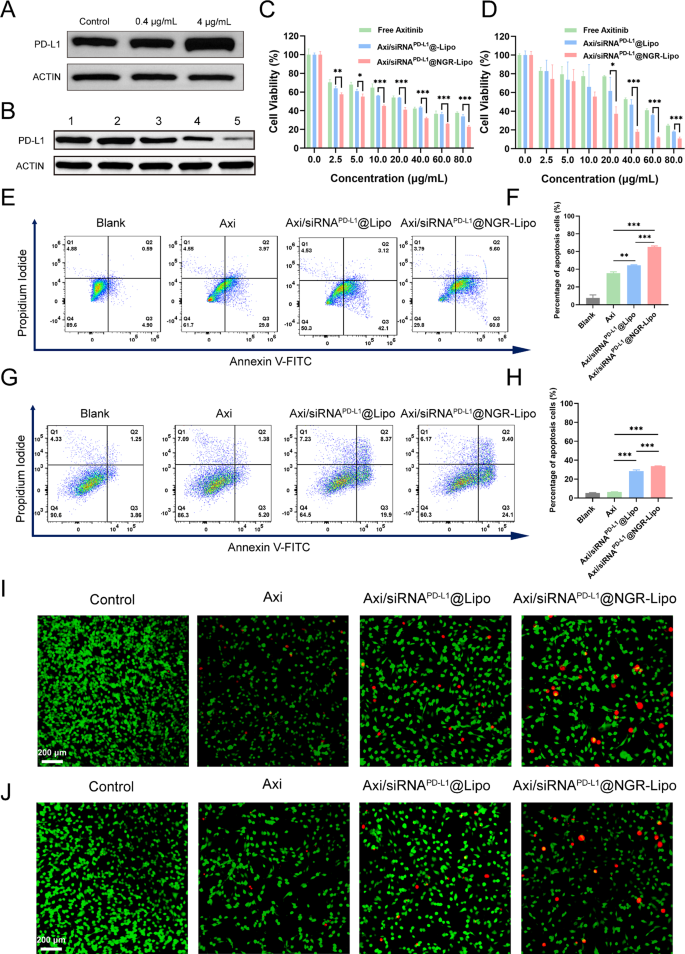

In vitro gene silencing and anti-tumor research. (A) Western blot (WB) evaluation of PD-L1 protein in Renca cells handled with Axitinib of various concentrations. (B) WB evaluation of PD-L1 protein in Renca cells handled with numerous formulations. (1: Management, 2: Axi, 3: siRNA^PD−L1, 4: Axi/siRNA^PD−L1@Lipo, 5: Axi/siRNA^PD−L1@NGR-Lipo.) Cytotoxicity of Free Axi, Axi/siRNA^PD−L1@Lipo and Axi/siRNA^PD−L1@NGR-Lipo of various concentrations on HUVEC cells (C) and Renca cells (D) (n = 4). Circulate cytometry assay (E) and quantitative evaluation (F) of apoptotic HUVEC cells handled with numerous formulations (n = 3). Circulate cytometry assay (G) and quantitative evaluation (H) of apoptotic Renca cells handled with numerous formulations (n = 3). Dwell/useless cell staining of HUVEC cells (I) and Renca cells (J) after numerous therapies. Knowledge had been current as imply ± SD. *p < 0.05, **p < 0.01, ***p < 0.001

Penetration and development inhibition of 3D spheroids in vitro

Though the above outcomes have demonstrated that Axi/siRNA^PD-L1@NGR-Lipo may improve cytotoxicity on Renca cells and successfully induce apoptosis, the 2D cell tradition couldn’t really mimic the tumor tissue [35, 36]. Thus, we constructed 3D tumor spheres with Renca cells to extra precisely mimic tumor tissue, which had been subsequently taken to check the penetration and development inhibition of NGR-modified liposomes. After 12 h of co-incubation with 3D tumor spheres, the Cou-6@NGR-Lipo group displayed far more intense fluorescence depth and deeper penetration in contrast with free Cou-6 and Cou-6@Lipo group, which can be associated to the NGR-mediated focusing on capability and endocytosis (Fig. 5A). Subsequently, inside 7 days of investigating development inhibition on tumor spheres, in comparison with free Axi group, tumor spheres within the liposome group each turned remarkably smaller and even collapsed, with probably the most extreme disintegration occurring in Axi/siRNA^PD−L1@NGR-Lipo group (Fig. 5B). This phenomenon would in all probability be attributed to the elevated cytotoxicity of Axi/siRNA^PD−L1@NGR-Lipo resulting from elevated mobile uptake mediated by NGR, which ends up in apoptosis of the outer cells, steadily shrinking the tumor spheres and even failing to keep up the sphere morphology.

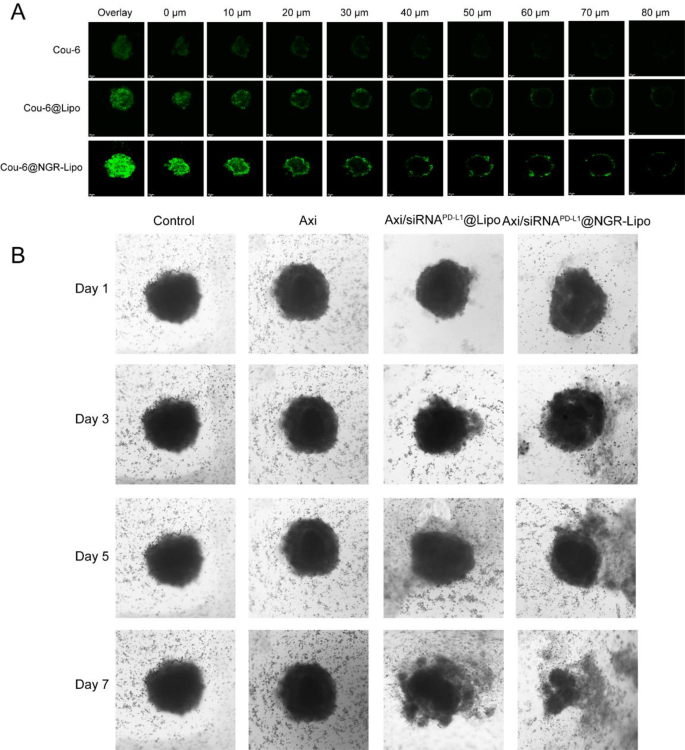

Penetration and development inhibition of 3D spheroids in vitro. (A) Tumor spheroid uptake after numerous therapies. (B) Consultant photographs of tumor spheroids handled with numerous preparations inside 7 days

In vivo biodistribution and tumor accumulation

The essential issue for brokers to realize therapeutic efficacy lies within the particular focusing on and aggregation on the tumor website in vivo. Subsequently, we explored the biodistribution and tumor aggregation of liposomes via an in vivo imaging system. Mice-bearing subcutaneous Renca tumor had been imaged beneath an in vivo imaging system to look at the fluorescence depth of tumor tissues at 1 h, 2 h, 4 h, 6 h, 8 h and 24 h after injection of free DiR, DiR@Lipo and DiR@NGR-Lipo, respectively. With the prolongation of time, no fluorescent indicators had been noticed on the tumor website in free DiR group, whereas the fluorescent indicators within the liposome group steadily elevated, with DiR@NGR-Lipo group displaying the strongest fluorescent sign depth (Fig. 6A). Subsequently, we carried out a quantification of the fluorescence depth within the tumor. The outcomes demonstrated that the identical pattern was noticed, with the fluorescence depth on the tumor website within the DiR@NGR-Lipo group being considerably larger than that within the Free DiR and DiR@Lipo teams (Fig. 6C). The outcomes had been associated to the NGR-mediated tumor homing and lively focusing on capability. At 24 h post-injection, main organs (coronary heart, liver, spleen, lungs and kidneys) and tumors of mice had been excised for ex vivo organ fluorescence imaging. Tumor tissues of DiR@NGR-Lipo group possessed the strongest fluorescence indicators, indicating an elevated aggregation of tumor website (Fig. 6B). Quantitative evaluation revealed an analogous pattern, with the fluorescence depth in tumor of DiR@NGR-Lipo and DiR@Lipo being 5.42-fold and 4.45-fold larger than that of free DiR, respectively (Fig. 6D). To raised assess the buildup effectivity of nanomaterials in numerous organs and tumors, we calculated the fluorescence depth of particular organs relative to the overall fluorescence. The outcomes demonstrated that the distribution proportion of DiR@NGR-Lipo in tumor tissues is considerably larger than in different tissues, rating second solely to the liver (Fig. S7). Furthermore, in contrast with Free DiR and DiR@Lipo, DiR@NGR-Lipo therapy improved its accumulation in tumor tissues and lowered its distribution within the liver. Taken collectively, NGR modification enhances the focusing on of liposomes to tumor tissue, permitting extra liposomes to build up on the tumor website fairly than in regular tissues which holds promise for subsequent exploration of anti-tumor efficacy in vivo.

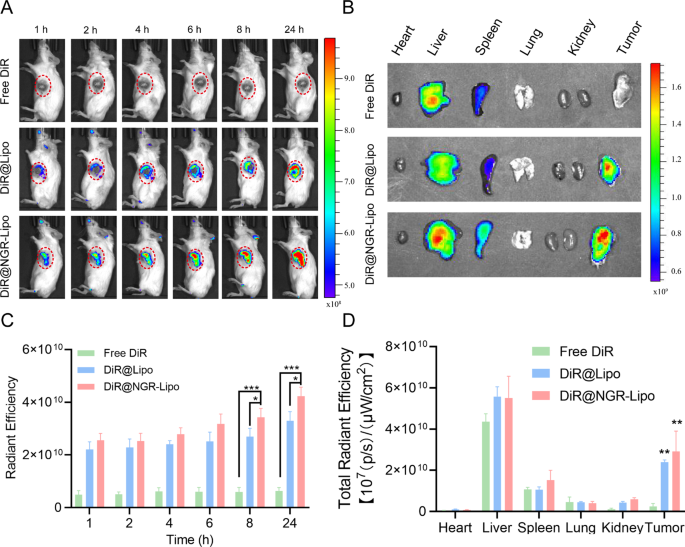

Biodistribution and tumor accumulation in vivo. (A) In vivo fluorescence photographs of Renca-bearing mice at 1 h, 2 h, 4 h, 6 h, 8 h and 24 h after injection. (B) Ex vivo fluorescence photographs of main organs and tumors at 24 h after injection. (C) Quantitative evaluation of fluorescence depth at tumor (n = 3). (D) Quantitative evaluation of main organs and tumors (n = 3). Knowledge had been current as imply ± SD. *p < 0.05, **p < 0.01, ***p < 0.001

In vivo anti-tumor efficacy and biosafety

Inspired by the superior anti-tumor efficacy in vitro and tumor-specific aggregation in vivo, we proceeded to analyze the anti-tumor efficacy of Axi/siRNA^PD−L1@Lipo in a mouse mannequin with subcutaneous renal tumors. Mice bearing Renca tumor had been handled with numerous preparations for five administrations, in accordance with the therapy schedule proven in Fig. 7A. As proven in Fig. 7B and D, throughout the therapy, tumors in Management group and free Axi group grew quickly, whereas Axi@NGR-Lipo group and Axi/siRNA^PD−L1@Lipo group displayed barely gradual development of tumors, indicating that they’ve anti-tumor efficacy. In distinction, Axi/siRNA^PD−L1@NGR-Lipo considerably and successfully managed tumor development, suggesting an enhanced anti-tumor impact. On the finish of the therapy, the extracted tumor was photographed and weighed (Fig. 7C and E), the place the smallest measurement and lightest weight additional validated the superior anti-tumor impact of Axi/siRNA^PD−L1@NGR-Lipo. Moreover, to analyze the impact of liposomes on the survival of mice, one other 50 mice with tumors had been handled as described above, and the survival of the mice was noticed for 60 days. As proven in Fig. 7F, greater than half of mice in Axi/siRNA^PD−L1@NGR-Lipo group had been nonetheless alive at 60 days, whereas all of the mice in different teams steadily died, suggesting that Axi/siRNA^PD−L1@NGR-Lipo considerably extended the survival interval of mice bearing tumors.

To additional validate the anti-tumor impact of Axi/siRNA^PD−L1@NGR-Lipo, hematoxylin and eosin (HE) staining and TdT-mediated dUTP nick-end labelling (TUNEL) staining had been carried out to guage pathological sections of tumors. Axi/siRNA^PD−L1@NGR-Lipo exhibited extreme nuclear crumpling and deletion, and probably the most intense apoptotic inexperienced fluorescent indicators (Fig. 7G), suggesting the potent killing results on tumor cells. The efficacy of anti-angiogenic brokers isn’t solely mirrored within the inhibition impact of tumors, but additionally prevention of the incidence of tumor metastasis. Therefore, lung tissues of mice had been excised to look at tumor nodules and carry out HE staining for the investigation of tumor metastasis. As might be seen from Fig. 7H, substantial tumor nodules appeared within the lungs of Management group, which had been solely barely attenuated in free Axi group. In distinction, the pulmonary metastasis of tumors within the liposome group was considerably lowered, with virtually no metastatic tumor nodules discovered within the lungs of Axi/siRNA^PD−L1@NGR-Lipo group, and comparable outcomes had been additionally obvious in HE staining of lungs. Consequently, Axi/siRNA^PD−L1@NGR-Lipo possessed glorious anti-tumor metastasis functionality, which may doubtlessly owe to the excellent anti-angiogenic properties.

Within the case of therapeutic brokers, it isn’t solely glorious therapeutic efficacy that’s required, but additionally optimum biosafety. Subsequently, the biosafety of mice in every group was assessed throughout the therapy. The physique weights of the mice in every group skilled no apparent adjustments throughout the therapy (Fig. S8). On the finish of therapy, serum was collected from the mice for evaluation of liver and kidney indices. Serum biochemical ranges together with ALT, AST, BUN and CRE, weren’t considerably altered within the handled teams as in comparison with Management group, indicating no hepatotoxicity or nephrotoxicity (Fig. S9). Furthermore, the key organs of the mice (coronary heart, liver, spleen and kidney) had been extracted for HE staining. In contrast with Management group, there have been no irregular adjustments within the pathological sections of the opposite handled teams, indicating that the preparation doesn’t trigger important toxicity and harm to different organs (Fig. S10). Thus, the ready liposomes have glorious biocompatibility and biosafety, with nice potential for the therapy of renal most cancers.

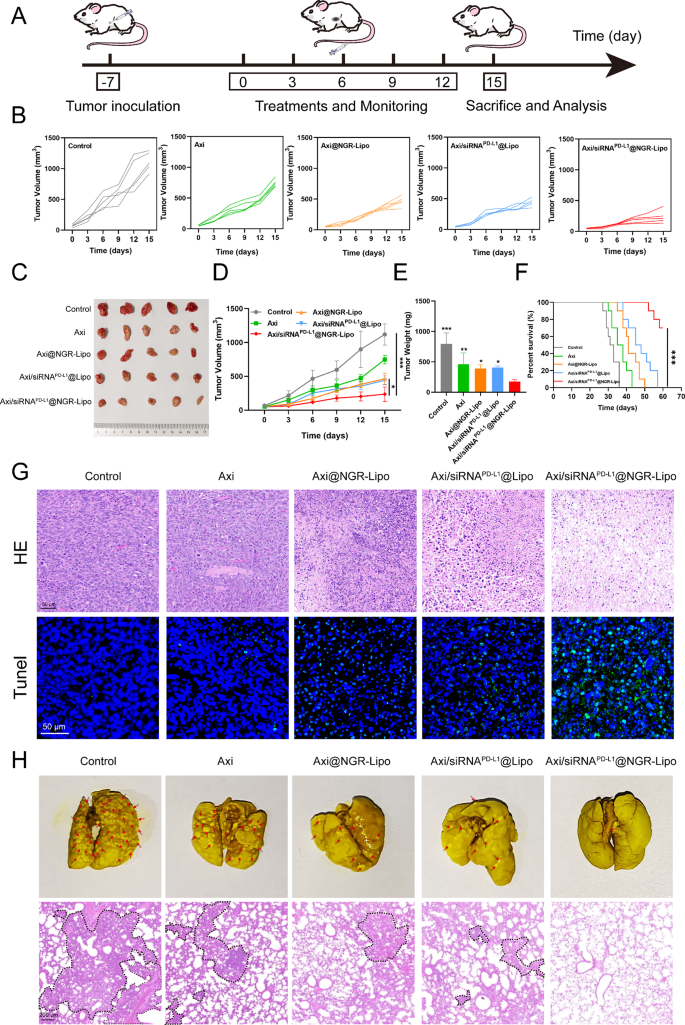

In vivo anti-tumor and anti-metastasis analysis. (A) Schematic illustration of the therapy. (B) Tumor development curves of every mouse in numerous teams (n = 5). (C) Photographs of the extracted tumors. (D) The imply tumor volumes of mice handled with numerous preparations (n = 5). (E) Imply weight of remoted tumors (n = 5). (F) Survival curves of mice handled with numerous preparations (n = 5). (G) Photographs of HE and TUNEL stained tumor sections from every group of mice. (H) Lung tissue and HE-stained sections of mice in numerous teams. Pink arrows pointed to lung metastatic tumor nodules. Black dotted line: lung metastatic tumor. Knowledge had been current as imply ± SD. *p < 0.05, **p < 0.01, ***p < 0.001

Tumor vascular reworking in vivo

RCC is a vascular-rich tumor, characterised by aberrant construction and performance. The irregular blood vessel community may restrict immune cell infiltration into tumors, endogenous immune surveillance and immune cell perform, leading to immune suppressive microenvironment. Regulating tumor vascular has develop into a promising technique for bettering the efficacy of immunotherapy. Due to this fact, we want to examine Axi/siRNA^PD−L1@NGR-Lipo whether or not may enhance the construction and performance of the vascular system within the tumor. Handled with numerous preparations, tumors had been extracted for CD31 staining, as a marker of vascular endothelium, and for α-smooth muscle actin (α-SMA) staining, as a marker of pericytes, the place pericyte protection are generally served as an indicator of vascular perform and integrity to determine vessel maturity [37]. Tumors in Management group confirmed ample CD31 pink fluorescence indicators however weak inexperienced fluorescence of α-SMA, which indicated that the tumors contained intensive immature microvessels however lacked pericyte protection across the endothelial partitions, with irregular vascular construction and performance (Fig. 8A). The irregular and chaotic vascular system within the tumor may irritate the acidic and hypoxic microenvironment, which might promote the invasion, era, metastasis and immunosuppressive microenvironment of the tumor [7]. In distinction, tumors of Axi/siRNA^PD−L1@NGR-Lipo group exhibited considerably lowered CD31 pink fluorescence of microvessels and elevated α-SMA inexperienced fluorescence of pericytes. Specifically, there was extra co-localization of pink CD31 fluorescence and inexperienced α-SMA fluorescence, indicating the presence of regular structured and functioning blood vessels. Quantitative evaluation additionally revealed comparable outcomes, with 11.3-fold lower of microvessel density and seven.04-fold elevation of pericyte protection in tumors of Axi/siRNA^PD−L1@NGR-Lipo group as in comparison with Management group (Fig. 8D and E). The above outcomes indicated that Axi/siRNA^PD−L1@NGR-Lipo may successfully transform and normalize the tumor vascular.

Afterward, to additional validate the advance of vascular perform, vascular perfusion was assessed by intravenous injection of FITC-labelled lectin [38]. After therapy, FITC-labelled lectin was injected into the mice via the tail vein and the tumor was harvested after ten minutes. In contrast with Management group, the fluorescence sign of FITC-labelled lectin (inexperienced fluorescence) was considerably elevated in tumors in Axi/siRNA^PD−L1@NGR-Lipo group (Fig. 8B), suggesting larger vascular perfusion, and Axi/siRNA^PD−L1@NGR-Lipo improved vascular perfusion by 31.50-fold over the Management group (Fig. 8F). Moreover, the advance in vascular structural integrity was explored by injecting 70-kDa FITC-labelled dextran into the mice by tail vein after therapy. Tumor sections of Management group offered ample leaking FITC-labelled dextran (inexperienced fluorescence), whereas within the Axi/siRNA^PD−L1@NGR-Lipo group, little leaking dextran was detected, indicating lowered vascular permeability (Fig. 8C). In the meantime, Axi/siRNA^PD−L1@NGR-Lipo therapy decreased vascular permeability by 87.56% over the Management group (Fig. 8G), implying a exceptional enchancment of vascular structural integrity. These research indicated that Axi/siRNA^PD−L1@NGR-Lipo may successfully enhance vascular perfusion and reduce vascular permeability after normalizing the tumor vasculature, which would offer a positive issue for enhancing the infiltration of immune cells into tumor tissue.

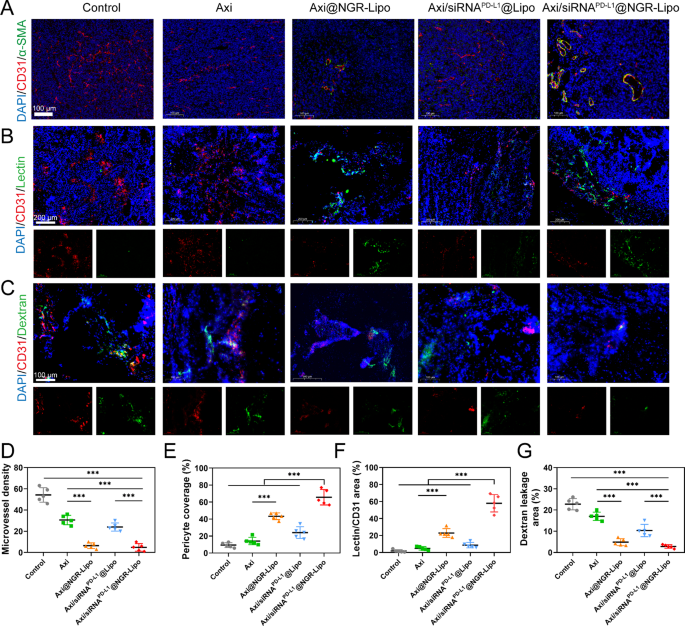

Tumor vascular reworking. (A) Consultant photographs of tumor microvasculature (CD31, pink) and pericytes (α-SMA, inexperienced) after numerous therapies. (B) Consultant photographs of tumor vascular perfusion by FITC-lectin (inexperienced) after numerous therapies. (C) Consultant photographs of tumor vascular permeability by FITC-dextran (inexperienced) after numerous therapies. (D) Microvessel density within the tumors after numerous therapies. Microvessel density was estimated by calculating the variety of CD31⁺ vessels on 5 fields from the tumor sections. (E) Pericyte protection within the tumors after numerous therapies. Pericyte protection was estimated by calculating α-SMA space (inexperienced) in a p.c per complete space on 5 fields from the tumor sections. (F) Quantitative evaluation of tumor vascular perfusion areas after numerous therapies. The tumor vascular perfusion space was estimated by calculating lectin⁺ space (inexperienced) in a p.c per CD31⁺ space (pink) on 5 fields from the tumor sections. (G) Quantitative evaluation of tumor vascular permeability areas after numerous therapies. The tumor vascular leakage space was estimated by calculating dextran⁺ space (inexperienced) in a p.c per complete space on 5 fields from the tumor sections. Knowledge had been current as imply ± SD. ***p < 0.001

Mechanisms of immunotherapy in vivo

We initially elucidated the components accounting for the superb anti-tumor efficacy of Axi/siRNA^PD−L1@NGR-Lipo when it comes to tumor vascular reworking, after which tried to proceed with the elucidation from the attitude of immune activation in vivo. It has been proposed that anti-angiogenic remedy can induce systemic immune modulation, with downregulation of myeloid-derived suppressor (MDSC) cells and regulatory T cells (Tregs), in addition to the numerous enhance of cytotoxic T cells expressing PD-1 and pure killer (NK) cells [39]. Due to this fact, we investigated the proportion of various immune-associated cells in tumors by stream cytometry evaluation of the tumor tissues after numerous therapies. Cytotoxic T lymphocytes (CTL, CD8⁺) are the primary drive of the anti-tumor immune response and play a job in killing tumor cells. As anticipated, Axi/siRNA^PD−L1@NGR-Lipo considerably elevated the infiltration of CD8⁺ T cells (CD45⁺CD3⁺CD8⁺) within the tumor (Fig. 9A), with about 5.04-fold larger than the Management group (Fig. 9B). Related outcomes had been additionally revealed in immunofluorescence, the place extra pink fluorescent indicators of CD8⁺ T cells had been offered in tumors of Axi/siRNA^PD−L1@NGR-Lipo (Fig. 9J and Fig. S11). As well as, NK cells train an immune surveillance perform within the physique and are additionally the spine of eliminating tumor cells. Circulate cytometry evaluation revealed that Axi/siRNA^PD−L1@NGR-Lipo considerably elevated the proportion of NK cells (CD45⁺CD3⁻CD49b⁺) in tumors by 1.69-fold over the Management group (Fig. 9C and D). The considerably larger proportion of CD8⁺ T cells and NK cells infiltrating the tumor may help the superb anti-tumor impact of Axi/siRNA^PD−L1@NGR-Lipo.

However, immunosuppressive cells, together with Tregs and MDSCs, would considerably inhibit the activation of CD8⁺ T cells and impede the anti-tumor immune response [40]. Subsequent, we examined the proportion of Tregs and MDSCs throughout the tumor by stream cytometry assay. Encouragingly, Axi/siRNA^PD−L1@NGR-Lipo considerably lowered the proportion of infiltrating Tregs (CD45⁺CD3⁺CD4⁺CD25⁺FOXP3⁺) to five.97% in comparison with the Management group with the Tregs infiltration of 33.1% (Fig. 9E and F). Equally, Axi/siRNA^PD−L1@NGR-Lipo introduced down the proportion of MDSCs (CD45⁺CD11c⁺CD11b⁺Gr-1⁺) throughout the tumor significantly, with solely 8.22% in comparison with 33.9% within the Management group (Fig. 9G and H). Immunofluorescence additionally confirmed a well-known pattern, with the inexperienced fluorescent indicators of FOXP3⁺ Tregs (Fig. 9Okay and Fig. S12) and CD11b⁺ MDSCs (Fig. 9L and Fig. S13) virtually invisible within the Axi/siRNA^PD−L1@NGR-Lipo group. Due to this fact, we think about that the immunosuppressive microenvironment of tumors might be successfully reversed by Axi/siRNA^PD−L1@NGR-Lipo.

Though CD8⁺ T cells infiltrated throughout the tumor had been significantly elevated, excessive expression of PD-L1 protein on the floor of the tumor cells prevented CD8⁺ T cells from recognizing tumor cells, leading to immune evasion and lowered anti-tumor efficacy. Moreover, in vitro mobile experiments have demonstrated that the therapy with Axi alone triggered elevated PD-L1 protein expression on the floor of tumor cells, which exacerbated the immune evasion of tumor cells. Nonetheless, it has been reported that the growing tumor PD-L1 expression may doubtlessly sensitize tumors to ICI therapies. Subsequently, we carried out immunohistochemistry (IHC) to look at the silencing effectivity of PD-L1 protein in vivo experiments. As proven in Fig. 9I and Fig. S14, Axi/siRNA^PD−L1@NGR-Lipo may successfully silence the PD-L1 genes and reduce the expression of PD-L1 proteins. Because of this, Axi/siRNA^PD−L1@NGR-Lipo not solely successfully exerts anti-tumor results, but additionally reduces the unwanted effects of elevated PD-L1 protein attributable to Axi alone, reaching a match made in heaven between the 2 brokers.

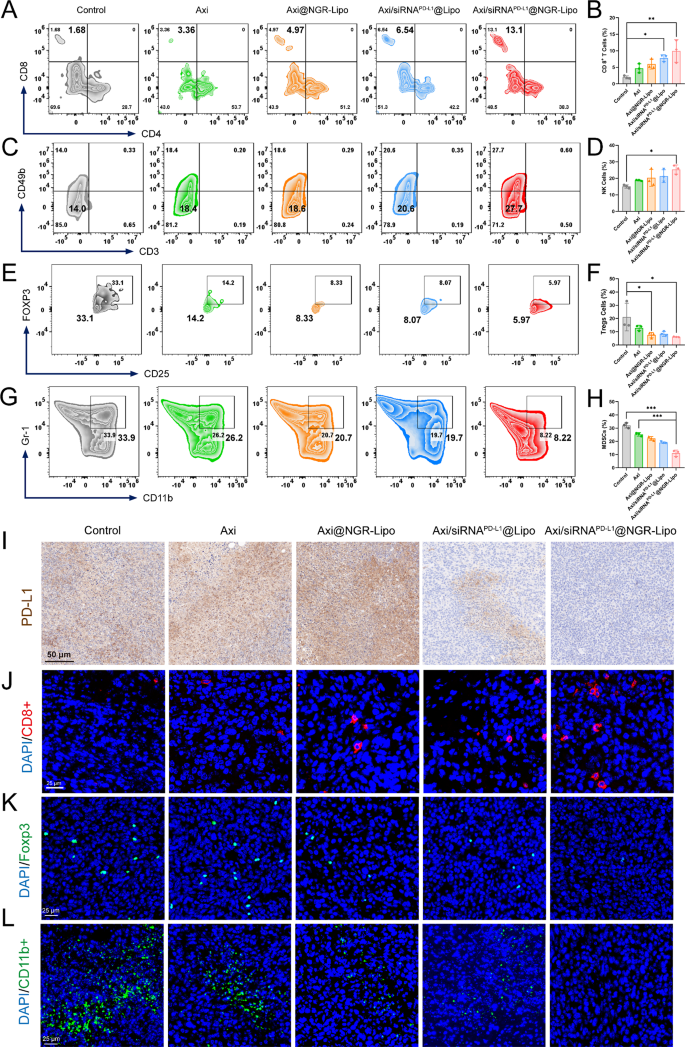

Immune activation in vivo. (A) Circulate cytometry assay and (B) quantitative evaluation of CD8⁺ T cells (CD45⁺CD3⁺CD8⁺) infiltrated in tumors after numerous therapies (n = 3). (C) Circulate cytometry assay and (D) quantitative evaluation of NK cells (CD45⁺CD3⁻CD49b⁺) in tumors after numerous therapies (n = 3). (E) Circulate cytometry assay and (F) quantitative evaluation of Tregs cells (CD45⁺CD3⁺CD4⁺CD25⁺FOXP3⁺) in tumors after numerous therapies (n = 3). (G) Circulate cytometry assay and (H) quantitative evaluation of MDSCs (CD45⁺CD11c⁺CD11b⁺Gr-1⁺) in tumors after numerous therapies (n = 3). (I) Immunohistochemistry of PD-L1 protein on tumors after numerous therapies. (J) Immunofluorescence of CD8⁺ T cells (Pink) in tumors after numerous therapies. (Okay) Immunofluorescence of Tregs cells (FOXP3⁺: inexperienced) in tumors after numerous therapies. (L) Immunofluorescence of MDSCs (CD11b⁺: inexperienced) in tumors after numerous therapies. Knowledge had been current as imply ± SD. *p < 0.05, **p < 0.01, ***p < 0.001

Transcriptome sequencing evaluation

To additional discover the molecular mechanisms of reworking the tumor vascular system and immunotherapy, we carried out transcriptome sequencing evaluation of tumors from Management and Axi/siRNA^PD−L1@NGR-Lipo teams. As proven within the volcano plot (Fig. 10A), 237 differential genes had been detected after Axi/siRNA^PD−L1@NGR-Lipo therapy in contrast with Management, with 107 up-regulated genes (pink dots) and 130 down-regulated genes (blue dots). Venn diagram illustrates the quantity of all genes detected in Management group and Axi/siRNA^PD−L1@NGR-Lipo group (Fig. 10B). Gene ontology (GO) enrichment evaluation confirmed that after Axi/siRNA^PD−L1@NGR-Lipo therapy, differential genes had been primarily enriched in immune response and tumor vascular system-related pathways (Fig. 10C). Immune response-related signaling pathways had been considerably upregulated after Axi/siRNA^PD−L1@NGR-Lipo therapy, together with NK cytokine manufacturing and mediated immune, innate and adaptive immune response, cell killing and T cell differentiation. In distinction, angiogenesis-related signaling pathways had been considerably downregulated, together with vasculature improvement, vascular endothelial cell development issue stimulus, and endothelial cell proliferation and improvement. Subsequently, we analyzed the expression ranges of genes related to the angiogenic system and located that genes associated to vasculature improvement (Fig. 10D), blood vessel endothelial cell migration (Fig. S15), endothelial cell proliferation (Fig. S16), and institution of endothelial limitations (Fig. S17) had been all considerably downregulated in Axi/siRNA^PD−L1@NGR-Lipo group. Quite the opposite, warmth maps present that gene expression ranges of immune-related signaling pathways in Axi/siRNA^PD−L1@NGR-Lipo group displayed an elevated pattern, together with adaptive immune response (Fig. 10E), innate immune response (Fig. S18), NK cell-mediated immunity (Fig. S19), T cell differentiation (Fig. S20) and regulation of immune response processes (Fig. S21). In the meantime, Protein-protein interplay (PPI) community indicated that genes of angiogenesis-related pathways and immunity-related pathways had been intently related to one another (Fig. 10F).

To validate the therapeutic mechanism of Axi/siRNA^PD−L1@NGR-Lipo, we additional explored the downstream signaling pathways. As proven in Fig. 10G, the binding of VEGF to the VEGF receptor (VEGFR) may activate RAS/RAF/MEK/ERK signaling pathway and PI3K/AKT signaling pathway, consequently selling neoangiogenesis. Axitinib, as a multi-targeted tyrosine kinase inhibitor, can effectively and selectively inhibit the exercise of VEGFR. The outcomes of western blot evaluation (Fig. 10H) clearly demonstrated that after therapy with Axi/siRNA^PD−L1@NGR-Lipo, the expression of VEGFR protein in mouse tumors was considerably lowered. Concurrently, the downregulated expression of pERK and pAKT proteins supplied compelling proof for the inhibition of RAS/RAF/MEK/ERK and PI3K/AKT signaling pathways. Upon inhibiting the exercise of VEGFR and subsequent blocking of the downstream pathway, Axi/siRNA^PD−L1@NGR-Lipo may normalize the tumor vascular construction, thereby resulting in an enchancment in vascular perfusion and permeability. The normalized vascular endothelial cells expressed sure particular adhesion molecules and chemokines, together with ICAM-1 and VCAM-1, as proven in Fig. 10H. These molecules performed an important function in guiding T cells emigrate from the circulation and cling to the tumor vascular endothelium via binding to the receptors on T cell floor, subsequently facilitating the infiltration of T cells into the tumor tissue. In abstract, transcriptome sequencing and western blot evaluation additional confirmed the constructive function of Axi/siRNA^PD−L1@NGR-Lipo in inhibiting tumor angiogenesis and reworking the vascular system, thereby selling T and NK cell infiltration, initiating innate and adaptive immunity, and potentiating anti-tumor immunotherapeutic efficacy.

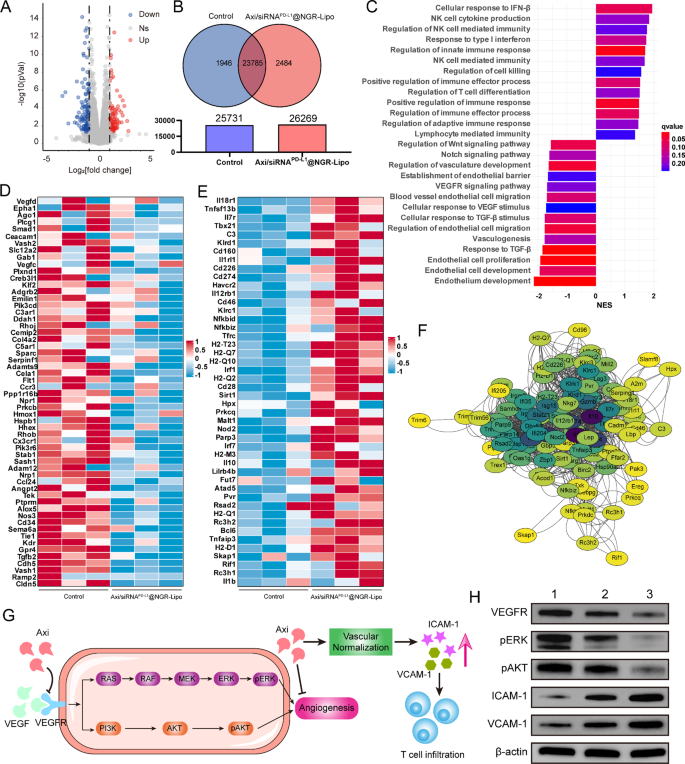

Transcriptome sequencing evaluation. (A) Volcano plots of the overall differentially expressed genes between Management and Axi/siRNA^PD−L1@NGR-Lipo group. (B) Venn diagram of all expressed genes. (C) GO enrichment after Axi/siRNA^PD−L1@NGR-Lipo therapy. Heatmap evaluation of gene expression concerned in vasculature improvement (D) and adaptive immune response (E). (F) Protein–protein interplay community. (G) The mechanism illustration of Axi/siRNA^PD−L1@NGR-Lipo facilitating T cell infiltration via inhibition of angiogenesis. (H) Western blot evaluation of VEGFR, pERK, pAKT, ICAM-1 and VCAM-1 proteins in mouse tumors after completely different therapies. 1: Management 2: Axi 3: Axi/siRNA^PD−L1@NGR-Lipo
